Z-Axis
Page Contents
Z-Axis Change Log
Z-Axis Assembly Instructions
Z-Axis Change Log
No changes were made
Z-Axis Assembly Instructions

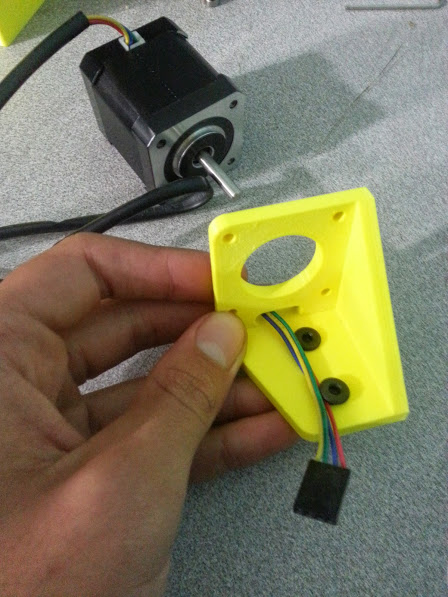

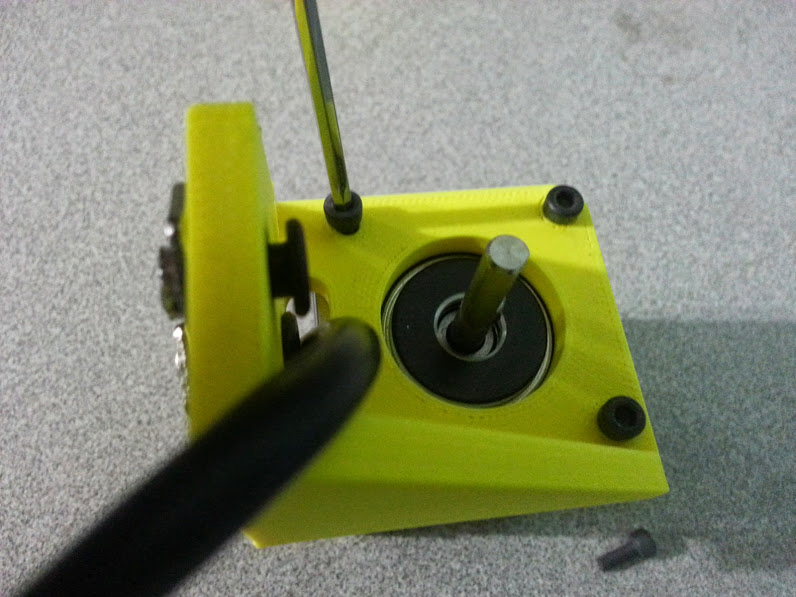

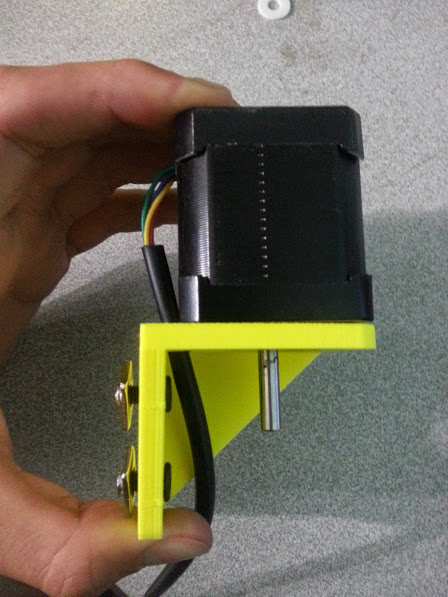

Partially screw 2 8mm M5 screws and tee nuts into the motor mounting bracket. Route the Stepper Motor’s cable through the bracket and attach the motor to the bracket with 4 8mm M3 screws.
