Common specs

material	Black Nylon PA66
inside height	11mm
inside width	16mm
outside height	15mm
outside width	22mm
pitch	20mm
bending radius	38mm
end piece configuration	X configuration
CAD model	Onshape
Purchase	The FarmBot Shop
vendor	JFLO
vendor part number	JE10Q.1.16F R38
notes	No plastic bag packaging

Variant specs

X-Axis Cable Carrier - 1.6m

length	1.6m (80 links) + end pieces
Price	$50.00
Quantity - Genesis	1
Quantity - Genesis XL	0
internal-part-name	Cable Carrier - 11 x 16 x 1600mm (80 links + end pieces in X configuration)
cost	$15.00

X-Axis Cable Carrier - 3.1m

length	3.1m (155 links) + end pieces
Price	$80.00
Quantity - Genesis	0
Quantity - Genesis XL	1
internal-part-name	Cable Carrier - 11 x 16 x 3100mm (155 links + end pieces in X configuration)
cost	$28.00

Component tests

Test	Description	Target	Tolerance

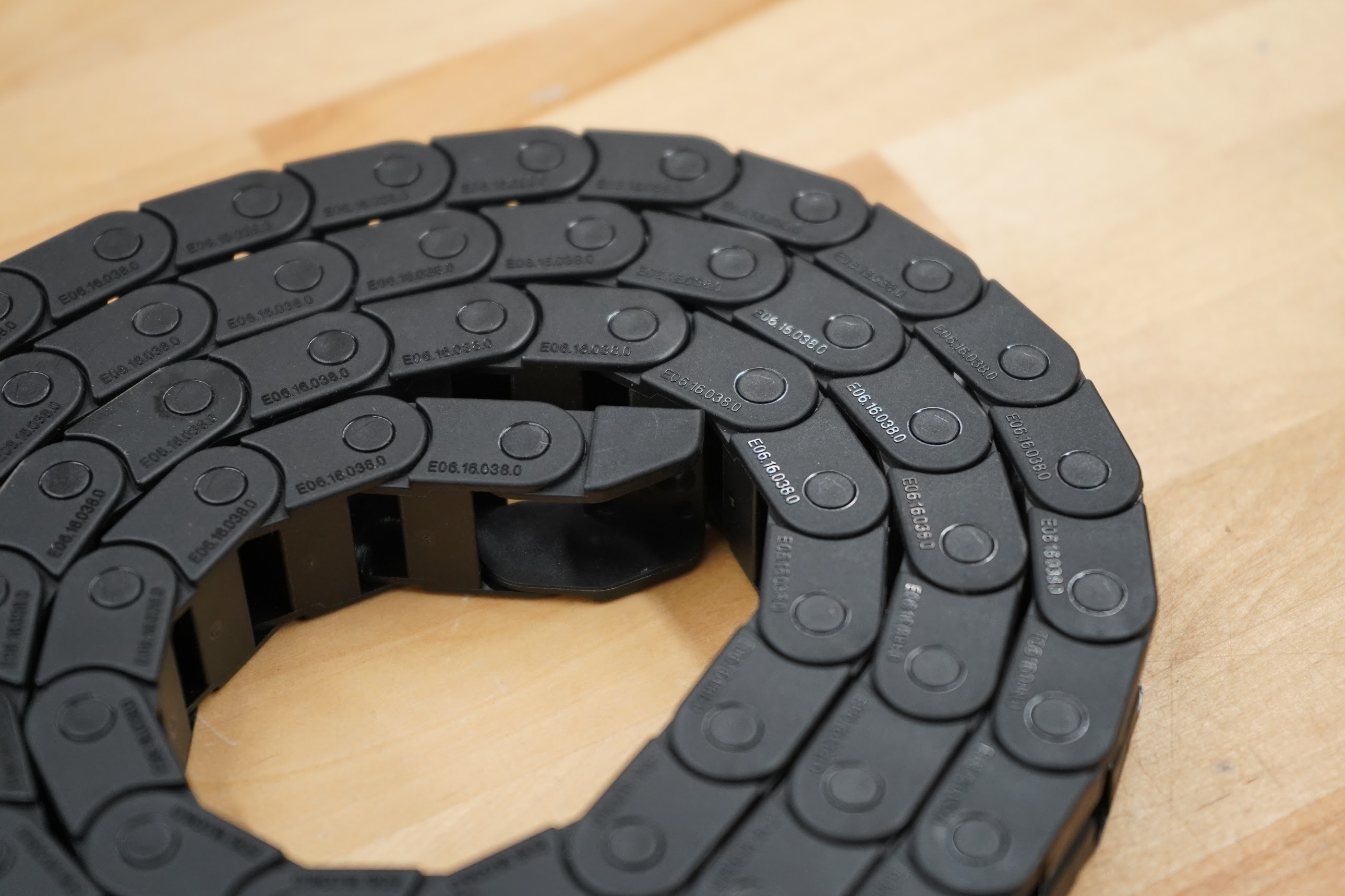

Size	Inspect the size marking embossed into the plastic.	See BOM spec	N/A
Length	Measure the length of the cable carrier using a measuring tape.	See BOM spec	0
End pieces	Inspect the orientation of the end pieces.	Oriented according to FarmBot system design	N/A
Mount fit	Connect the end pieces to the appropriate cable carrier mounts/supports using the appropriate hardware.	Should fit as expected	N/A
Contents fit	Inert all cables and tubing into each cable carrier according to FarmBot system design.	Should fit as expected	N/A

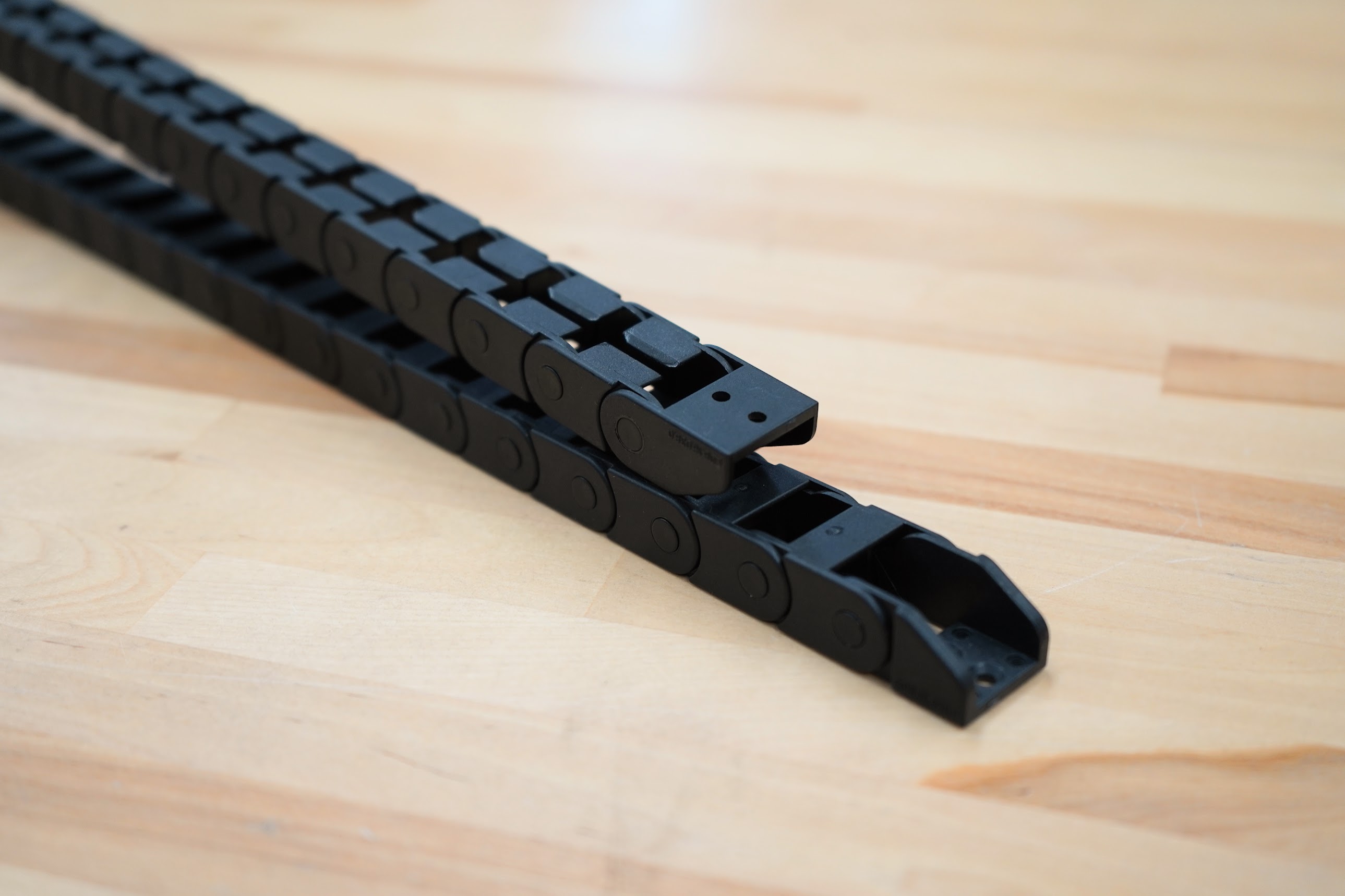

End piece configuration
