Pi Adapter Board

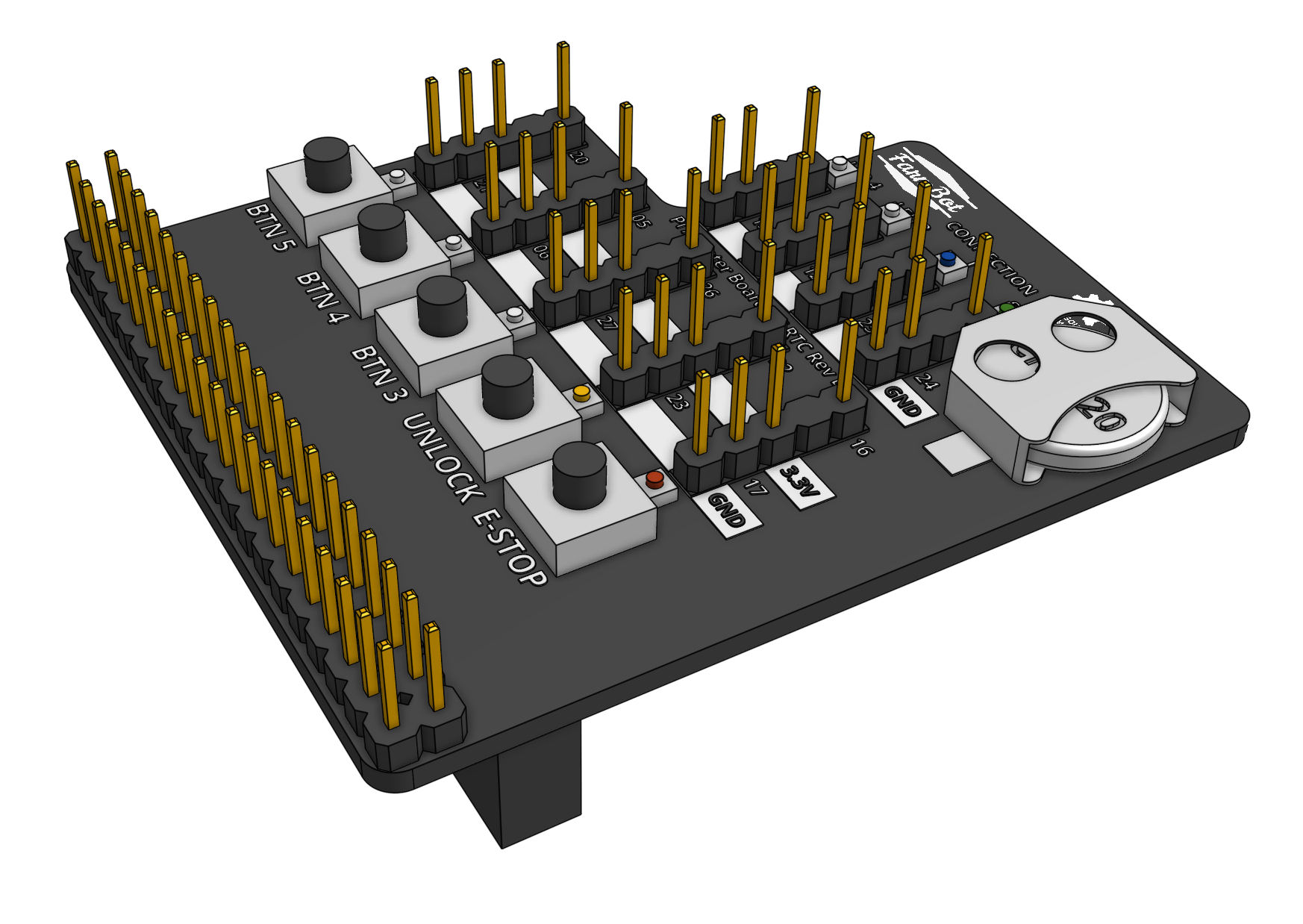

This PCB mounts directly onto the Raspberry Pi’s GPIO pin header and provides push buttons and LED indicators as well as connectors for external buttons and LEDs. It also features a real-time clock for timekeeping in offline situations.
Specs
| PCB color | Black |
| realtime clock | Integrated |
| battery | CR1220 |
| source files | Schematic and Board Layout. |
| Price | $15.00 |
| Quantity |
Genesis - 1
Genesis XL - 1 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Pi Adapter Board w/ RTC |
| rev | B |
| vendor | LDO |
| cost | $4.90 |
Component tests
| Test | Description | Target | Tolerance |
|---|---|---|---|
| Pins | Inspect the pins for damage. | No pins should be bent | N/A |
| RTC battery | Ensure the RTC battery is inserted. | Included | N/A |
| Color | Inspect the color of the PCB. | Matte black | N/A |
