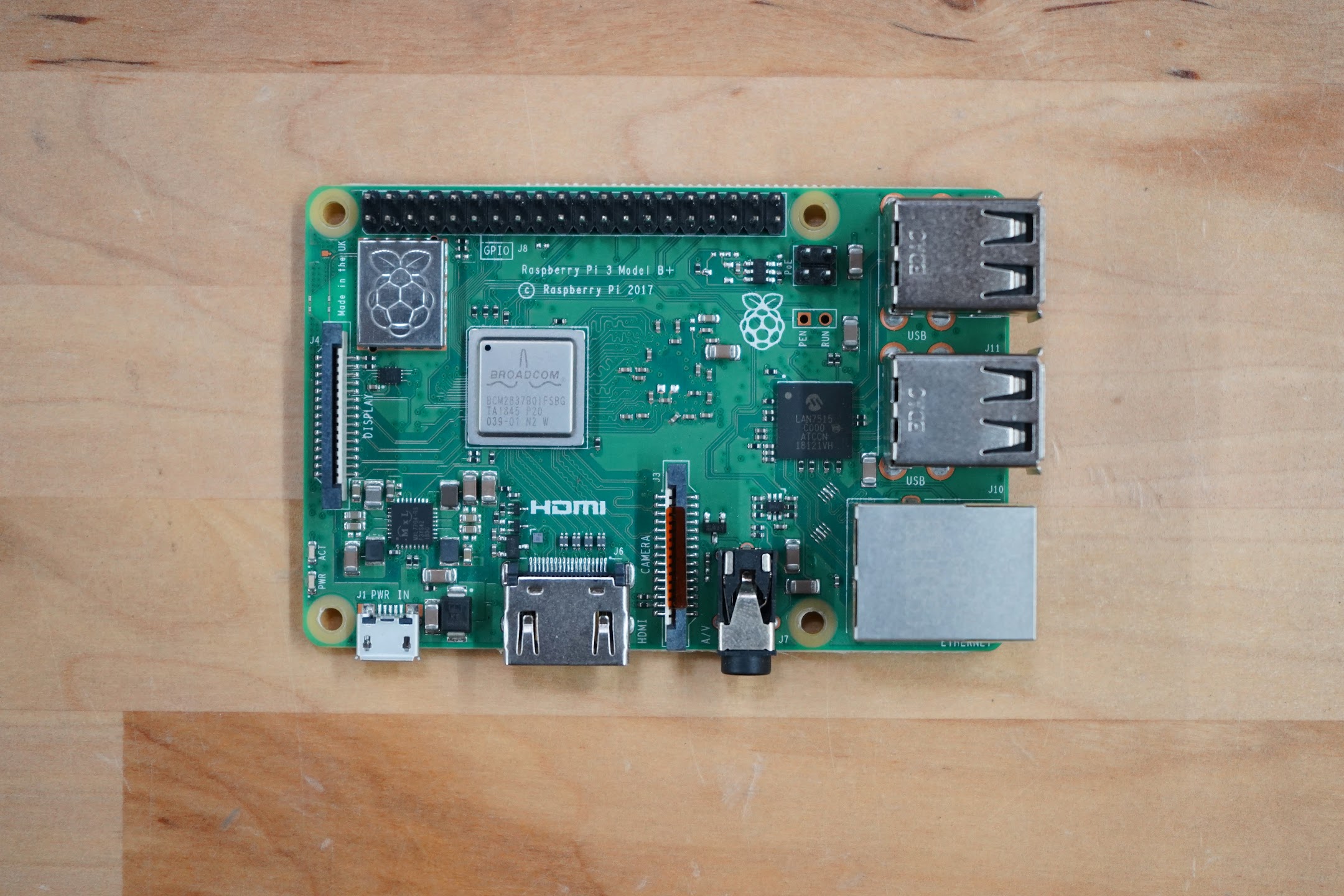

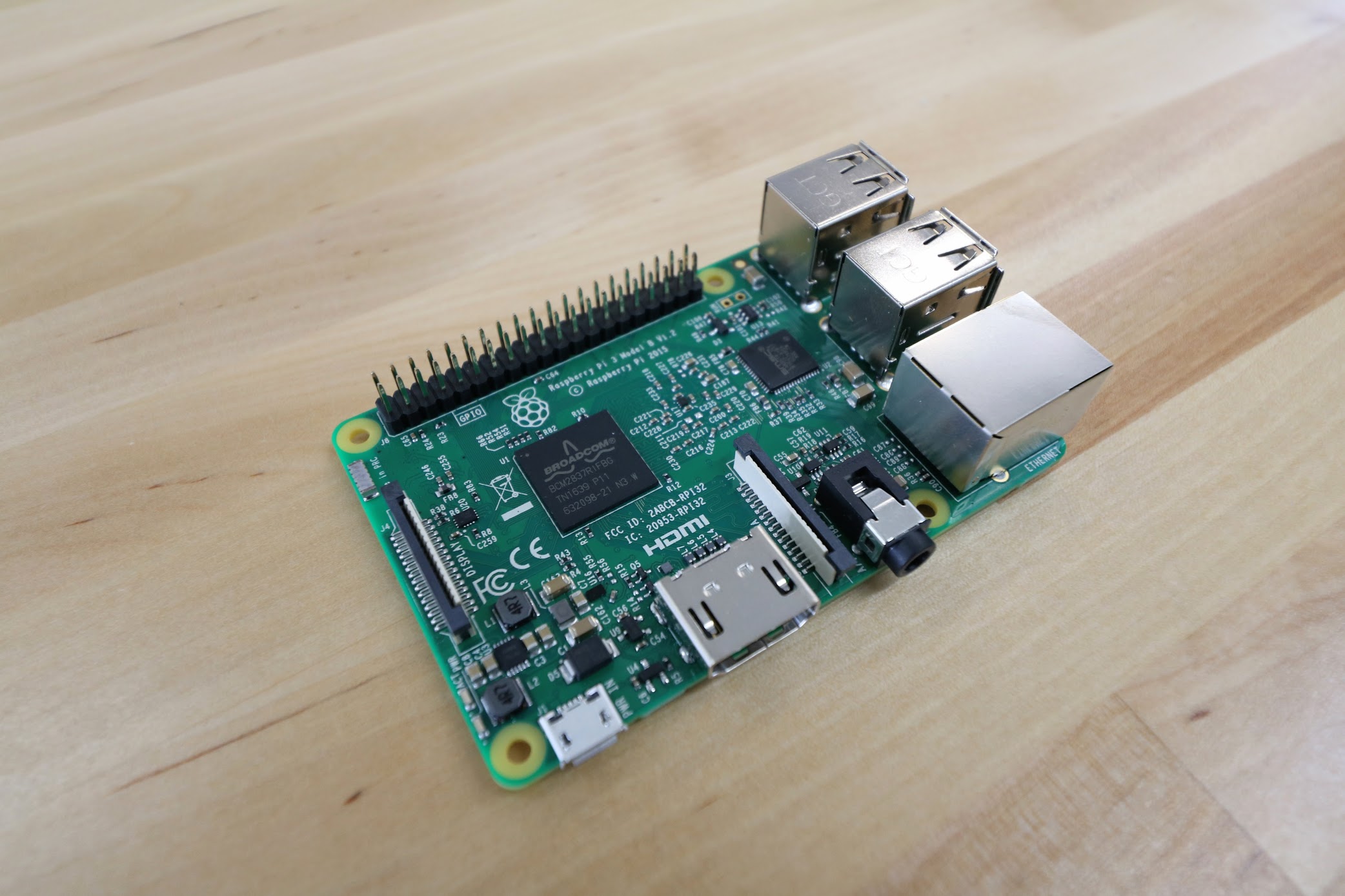

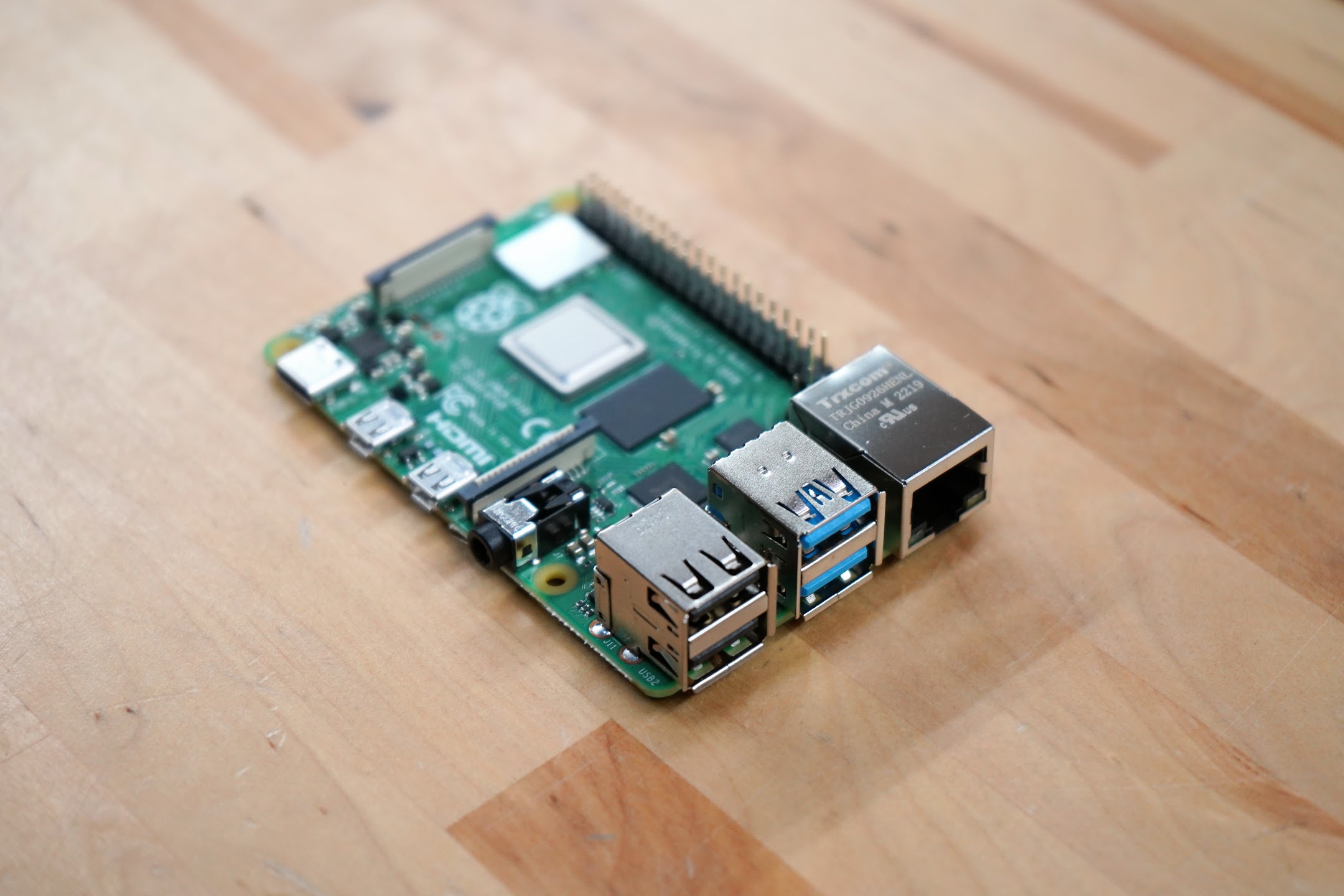

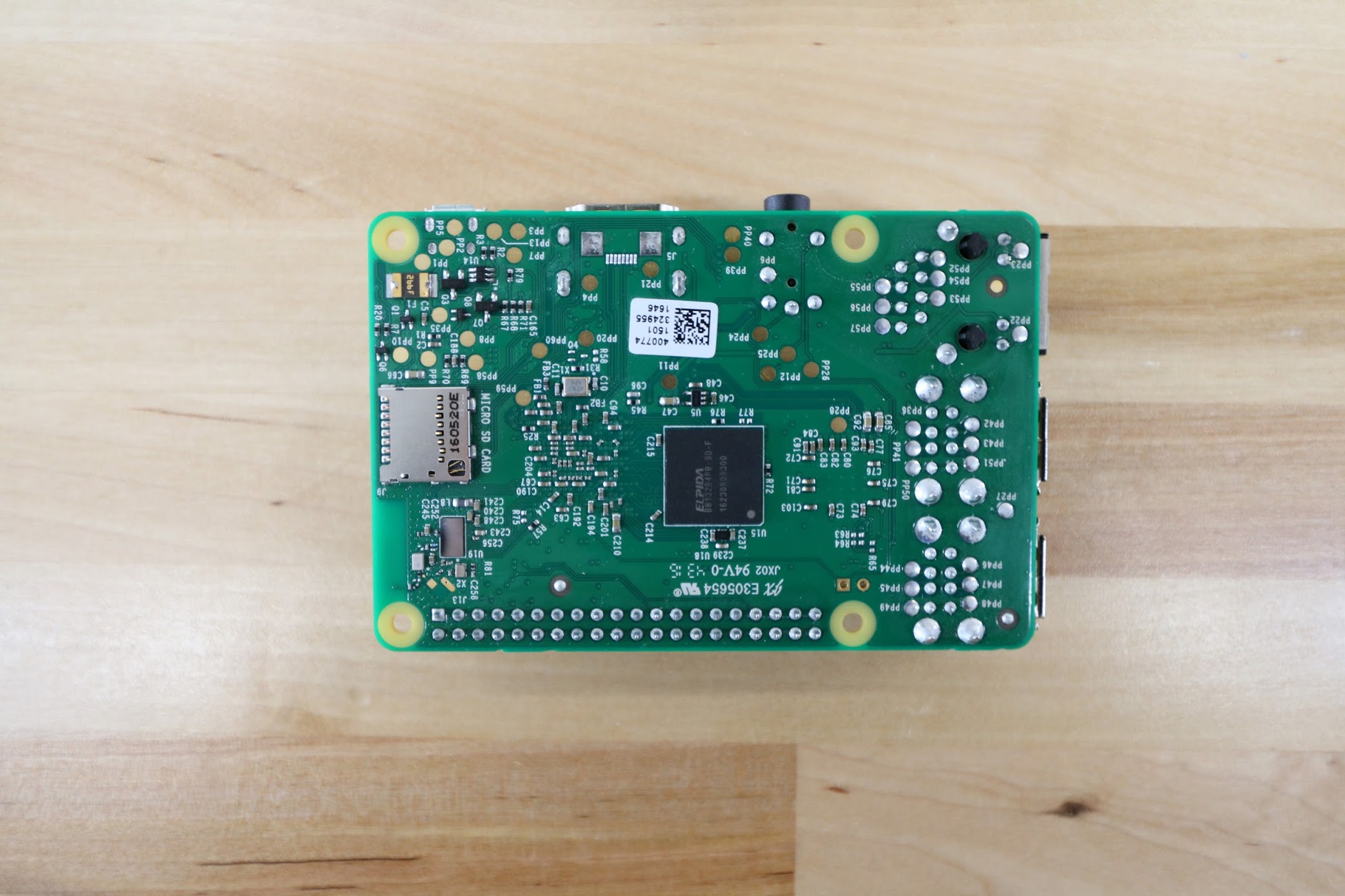

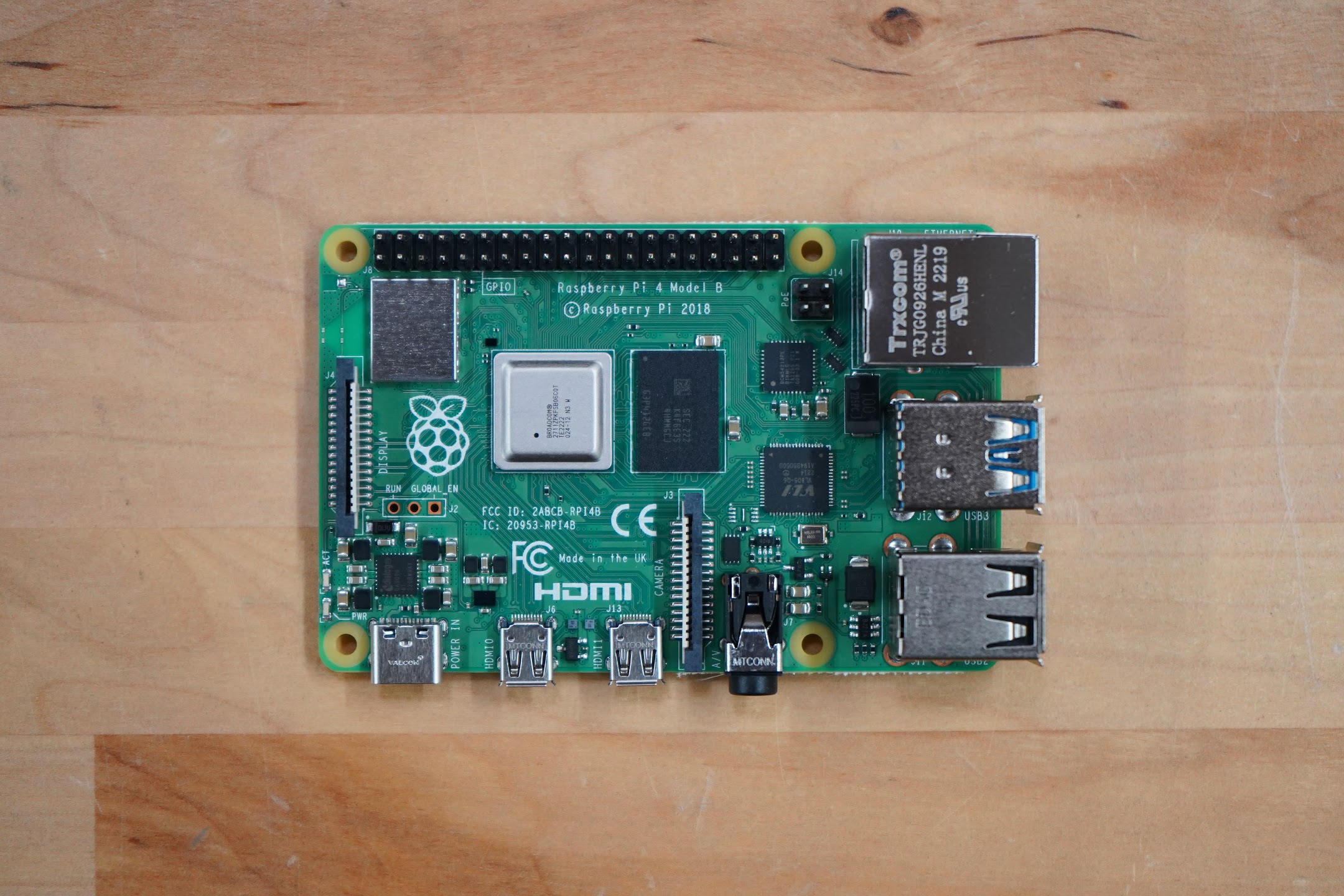

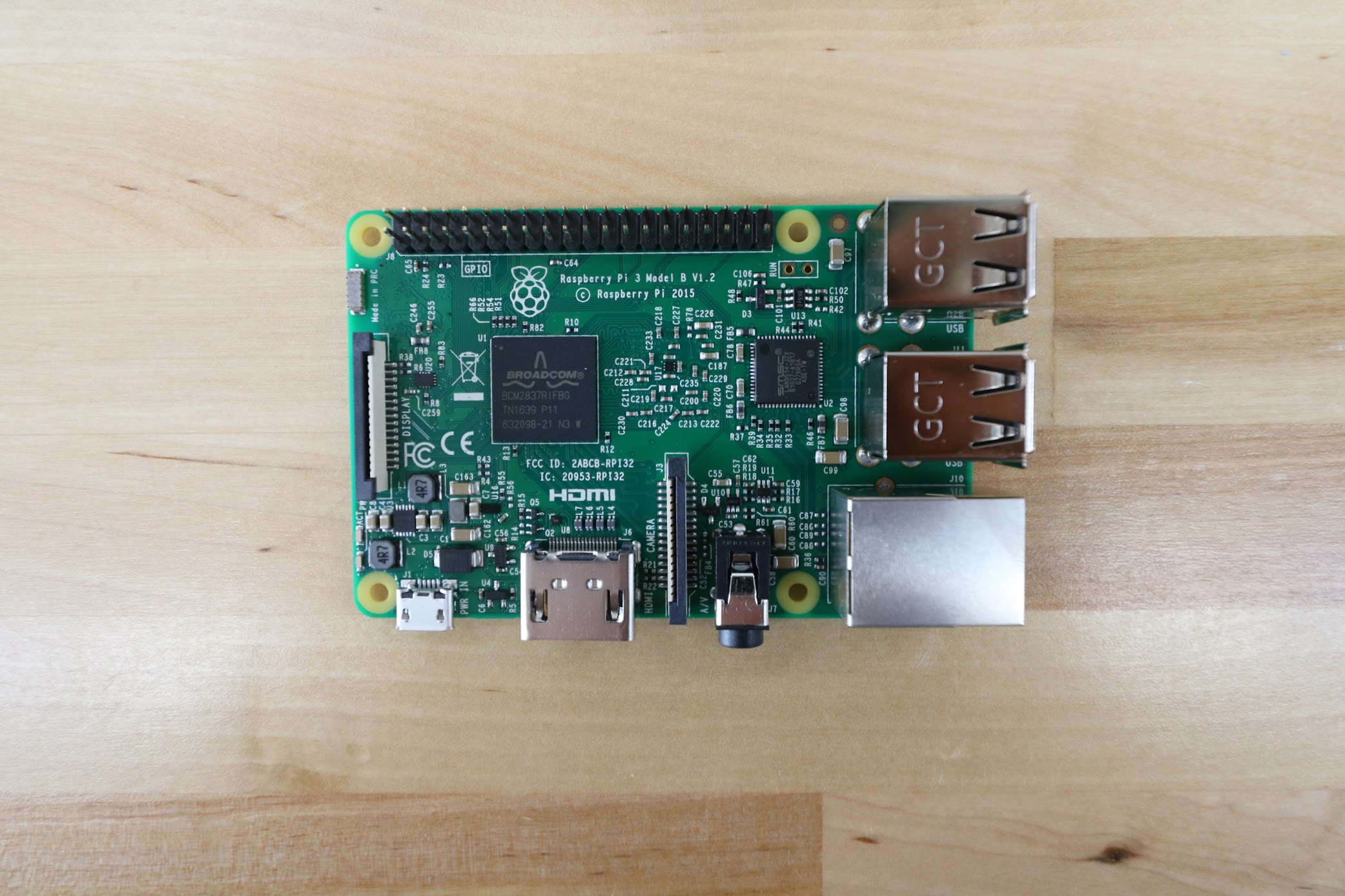

Raspberry Pi
This is the host computer of FarmBot. You might also call it FarmBot’s brain. The Raspberry Pi runs FarmBot OS, communicates with the web application over ethernet or WiFi, and talks to the Farmduino over a USB serial connection.
Specs
| Model | 4B - 1GB |
| CPU | 1.5Ghz Quad Core |
| RAM | 1GB |
| WiFi | 2.4 GHz and 5.0 GHz 802.11b/g/n/ac |
| Ethernet | 1000 |
| USB | 2x USB 3.0 and 2x USB 2.0 |
| Storage | MicroSD |
| GPIO | 40-pin header |
| Price | $50.00 |
| Quantity |
Genesis - 1
Genesis XL - 1 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Raspberry Pi 4B - 1GB |
| cost | $35.00 |
Component tests
| Test | Description | Target | Tolerance |
|---|---|---|---|
| Model | Inspect the board for model number. | Model 4B |
N/A |
| Brand | Inspect the board for the brand name. | Raspberry Pi |
N/A |
| Condition | Inspect to ensure the product is not used or refurbished. | Product should be brand new | N/A |
| GPIO pins | Inspect the GPIO pins for damage. | No pins should be bent | N/A |
