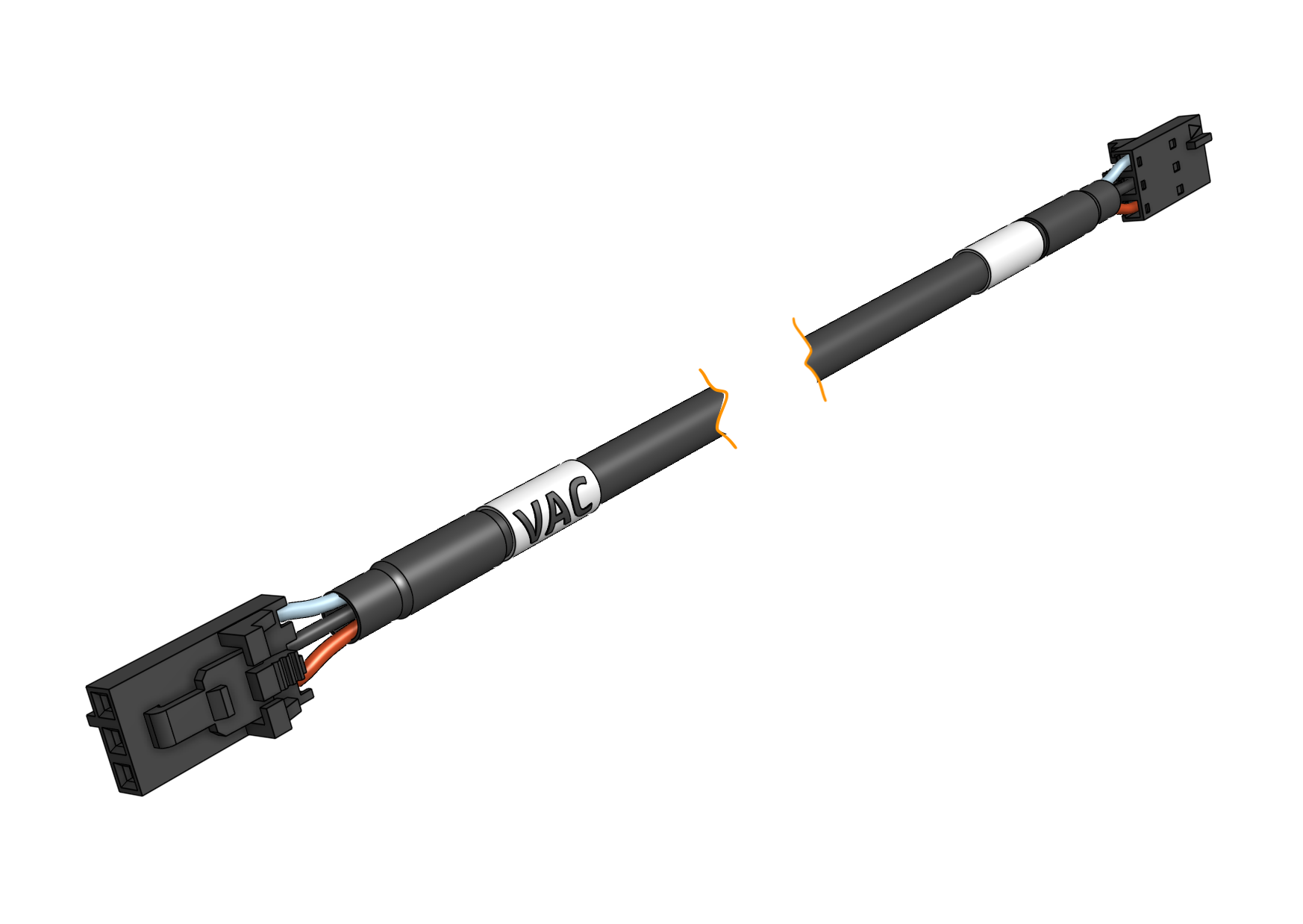

Y Vacuum Pump Cable
This cable connects the vacuum pump to the Farmduino.
Common specs
| cable | Shielded 22AWG-2C |
| rated voltage | 300V |
| inner colors | Red and black |
| outer color | Black |
| heat shrink label | VAC |
| end 1 | 50579403 |
| end 2 | 50579403 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| notes | Must perform a continuity check at factory |
Variant specs
Y Vacuum Pump Cable - 2.6m
| lengths | 2.6m |
| Price | $15.00 |
| Quantity - Genesis | 1 |
| Quantity - Genesis XL | 0 |
| internal-part-name | Vacuum Pump Cable - Y, 2.6m (Genesis) |
| rev | D |
| cost | $4.70 |
Y Vacuum Pump Cable - 4.1m
| lengths | 4.1m |
| Price | $20.00 |
| Quantity - Genesis | 0 |
| Quantity - Genesis XL | 1 |
| internal-part-name | Vacuum Pump Cable - Y, 4.1m (Genesis XL) |
| rev | D |
| cost | $6.20 |
Component tests
| Test | Description | Target | Tolerance |
|---|---|---|---|
| Connectors and continuity | Use the cable to connect a vacuum pump to a Farmduino. | The cable’s connectors should connect as expected and the vacuum pump should be operable. | N/A |
| Length | Measure the length of the two sections of cable using a tape measure. | See BOM spec | +/- 20mm |
| Cable | Inspect the cable’s spec. | See BOM spec | N/A |
| Color | Inspect the color of the cable. | Black outer, black and red inner | N/A |
| Label | Inspect the label text. | VAC |
N/A |
