Gantry Column

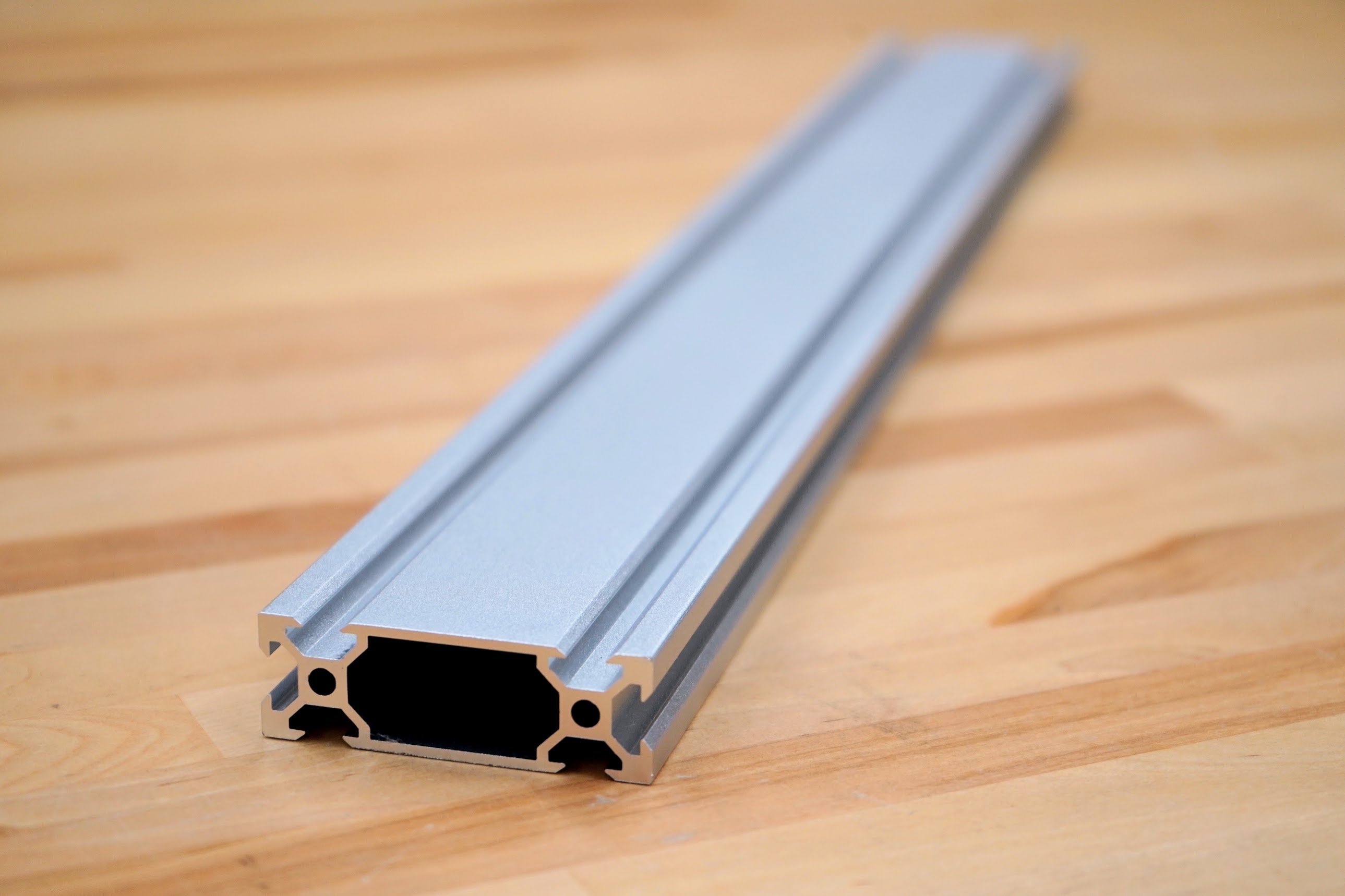

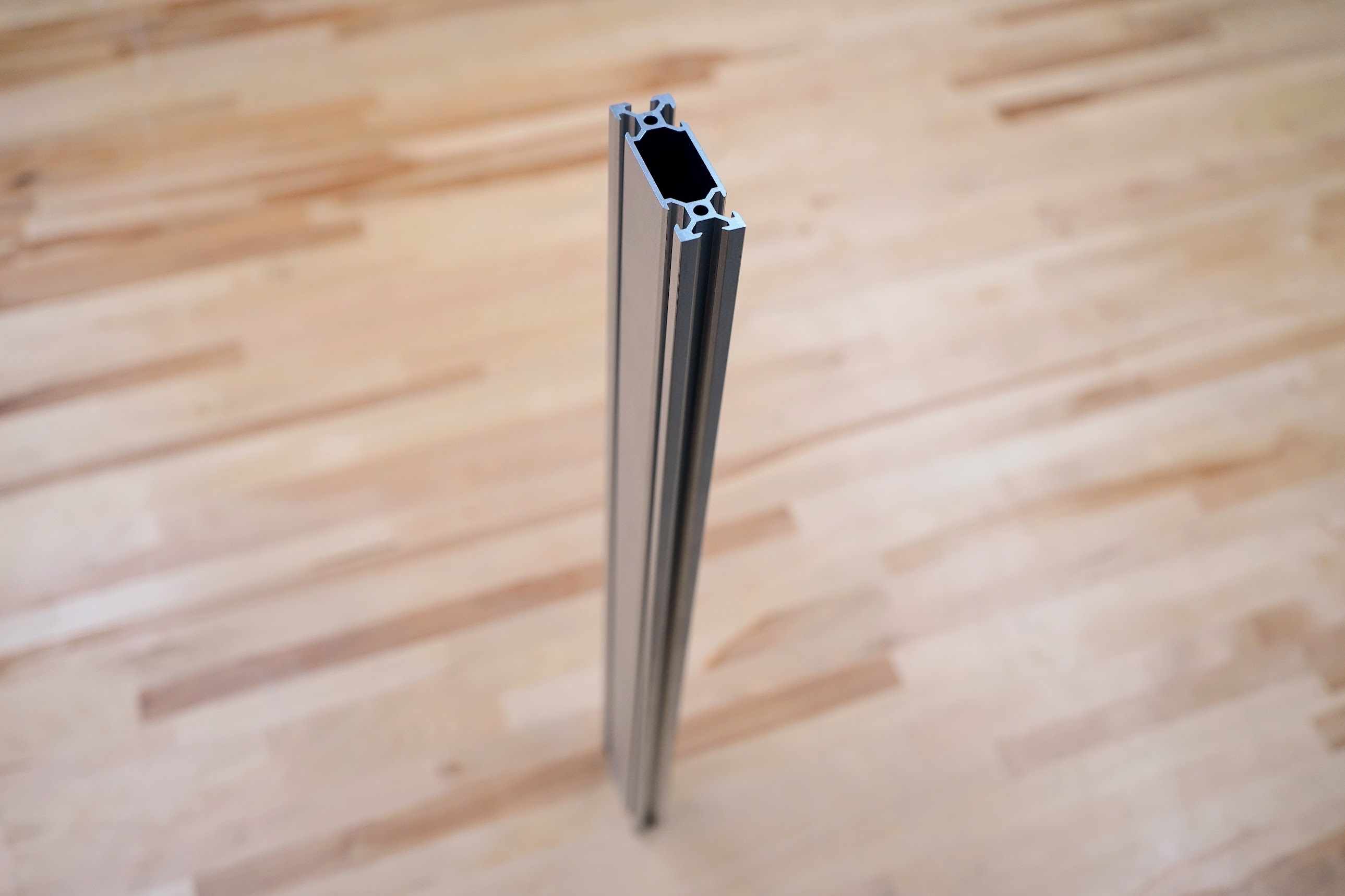

The gantry columns are made from aluminum extrusions. They can be scaled to be taller or shorter to satisfy your needs. The large space inside the columns is used to conceal and protect the GT2 timing belts that run along the tracks and up to the X-axis motors.
Specs
| length | 500mm |

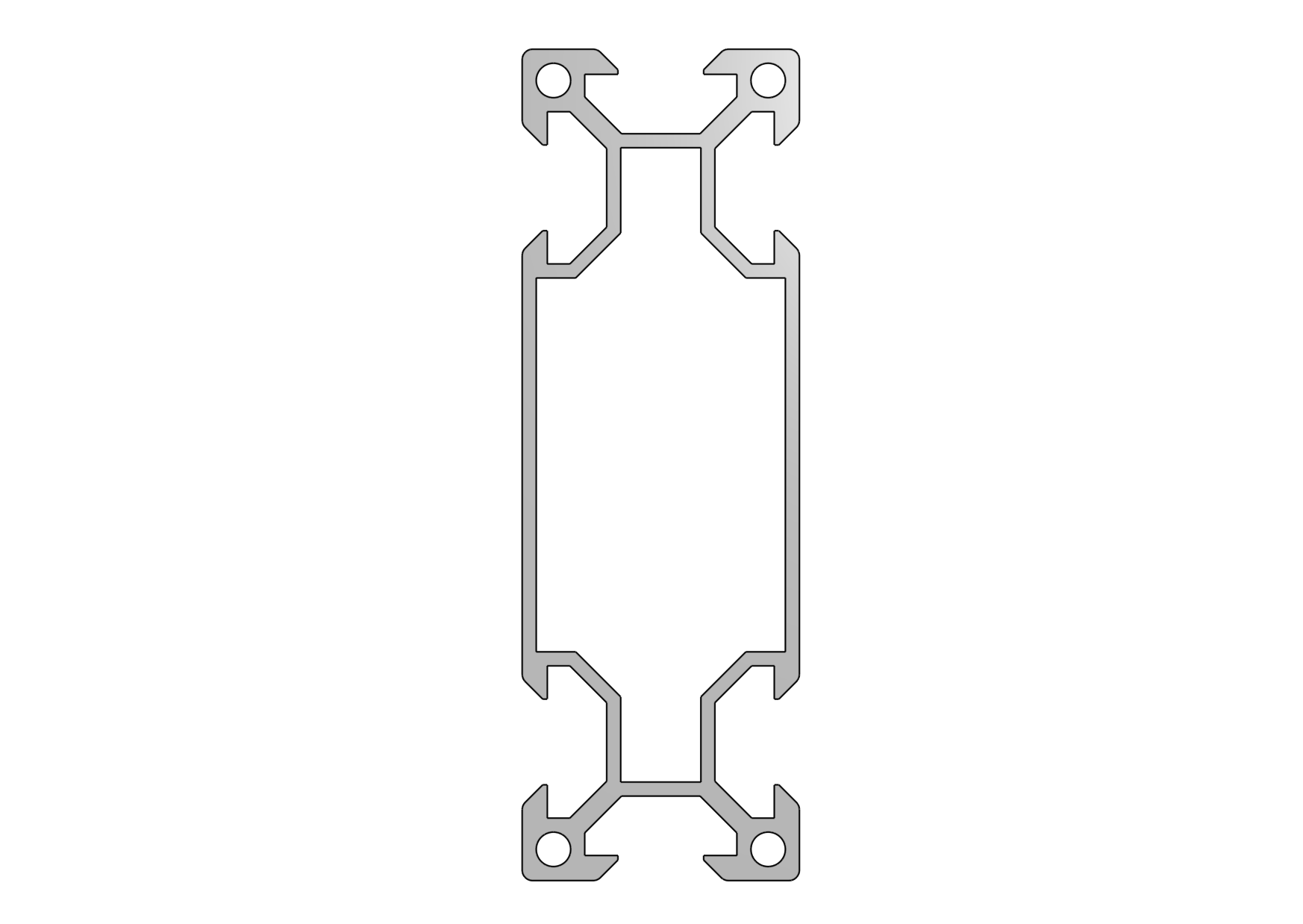

| profile | Custom, 20mm x 60mm V-Slot compatible |
| material | 6063-T5 Aluminum |
| surface treatment | Sand blasted and clear anodized |
| Price | $15.00 |
| Quantity |
Genesis - 2
Genesis XL - 2 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Gantry Column - 500mm |
| rev | D |
| vendor | LDO |
| cost | $4.00 |
| component tests | Extrusion tests |
