Gantry Main Beam

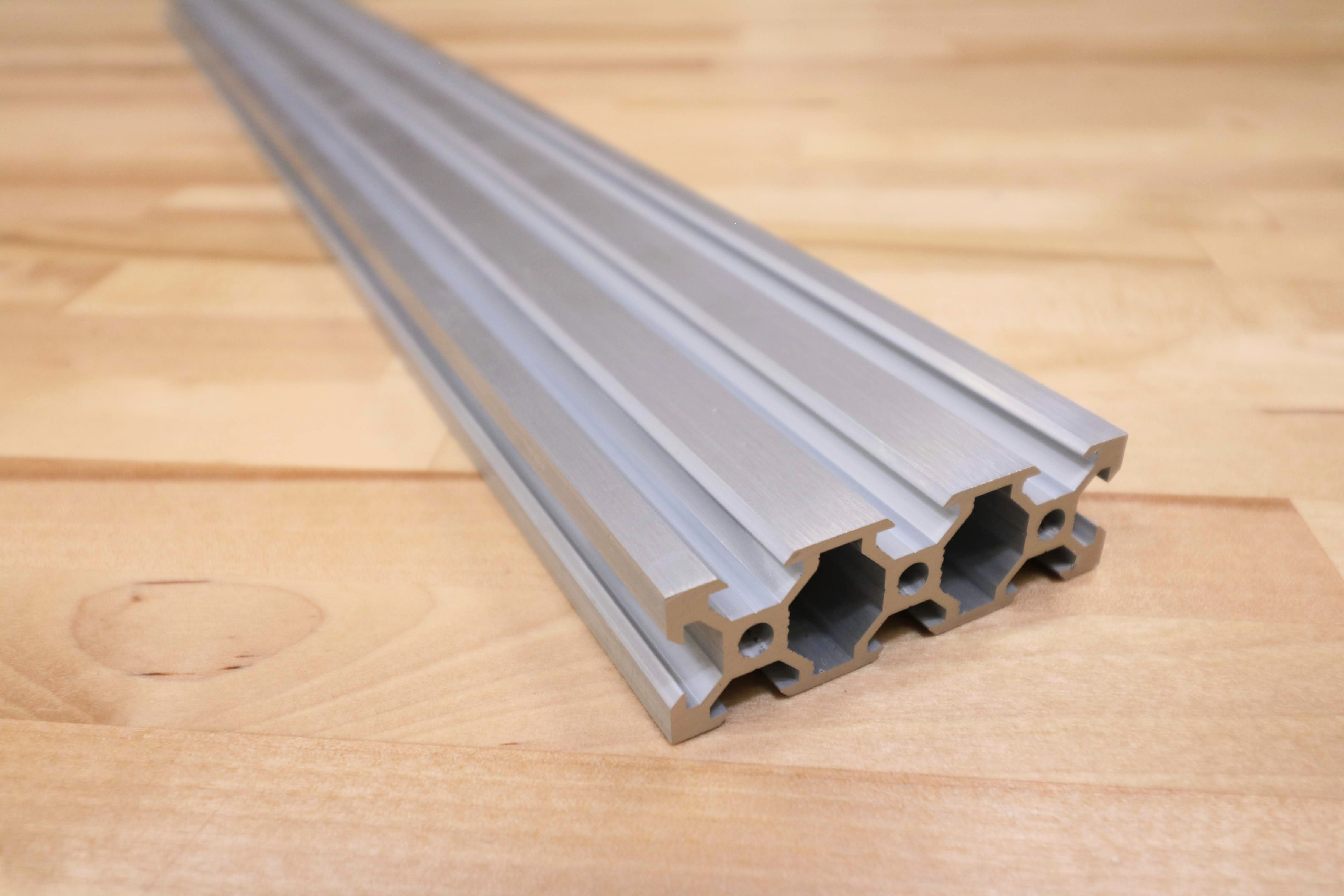

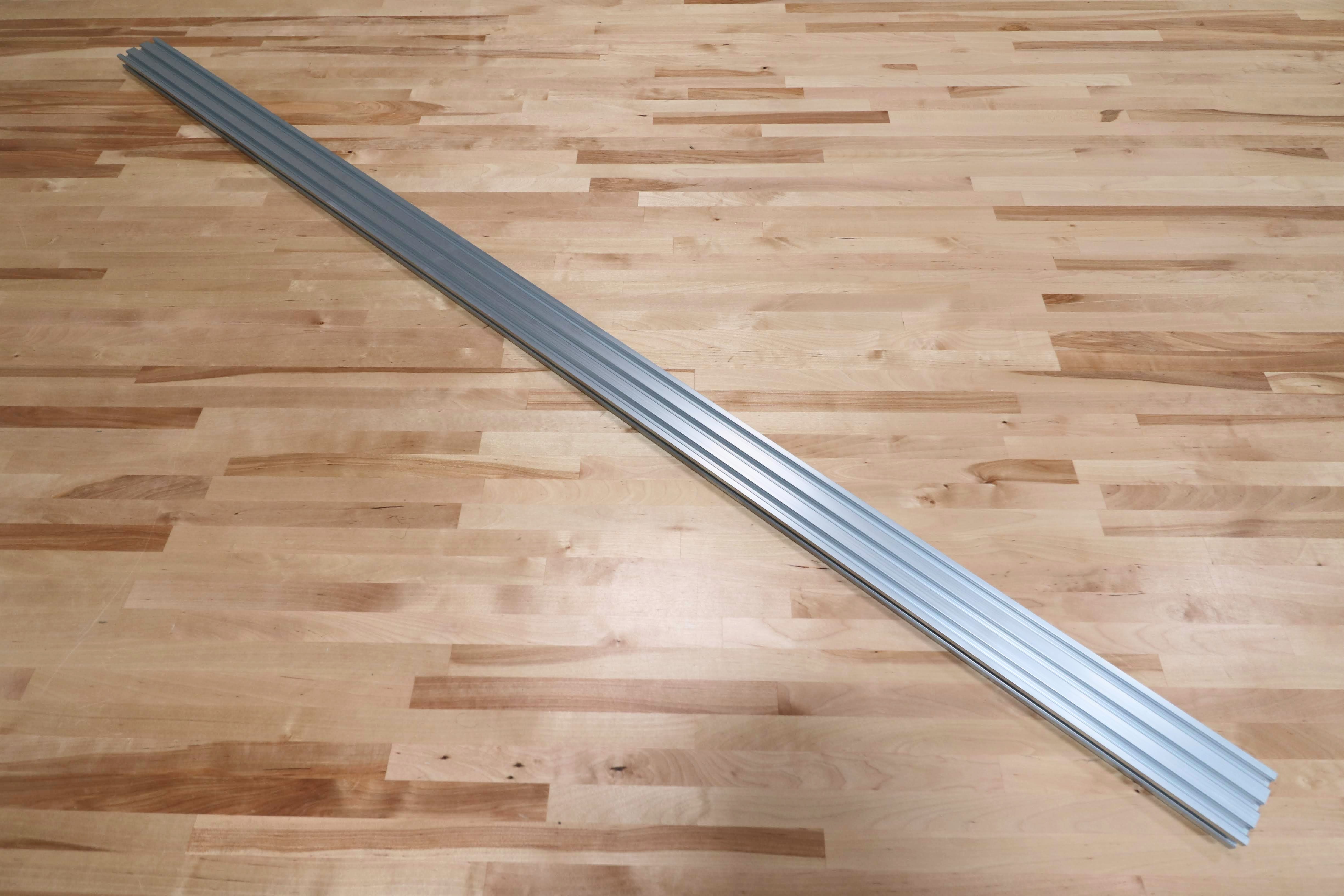

This aluminum extrusion serves as the gantry’s primary structural element. The cross-slide’s v-wheels move across this extrusion, allowing FarmBot to move in the y-direction. It is possible to make this extrusion longer or shorter to suit your needs.
Common specs

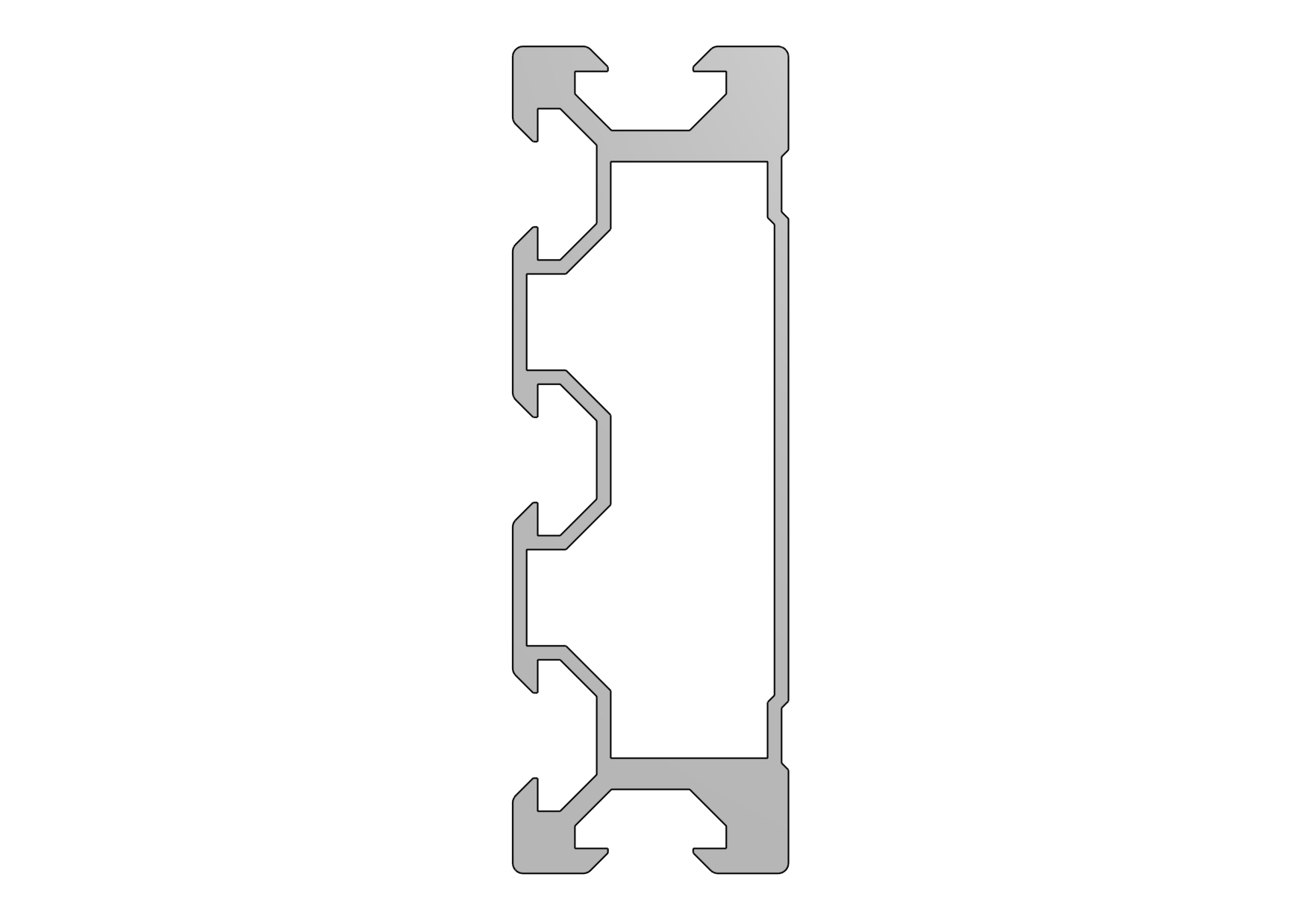

| profile | Custom, 20mm x 60mm V-Slot compatible |
| material | 6063-T5 Aluminum |
| surface treatment | Sand blasted and clear anodized |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| vendor | LDO |
| component tests | Extrusion tests |
Variant specs

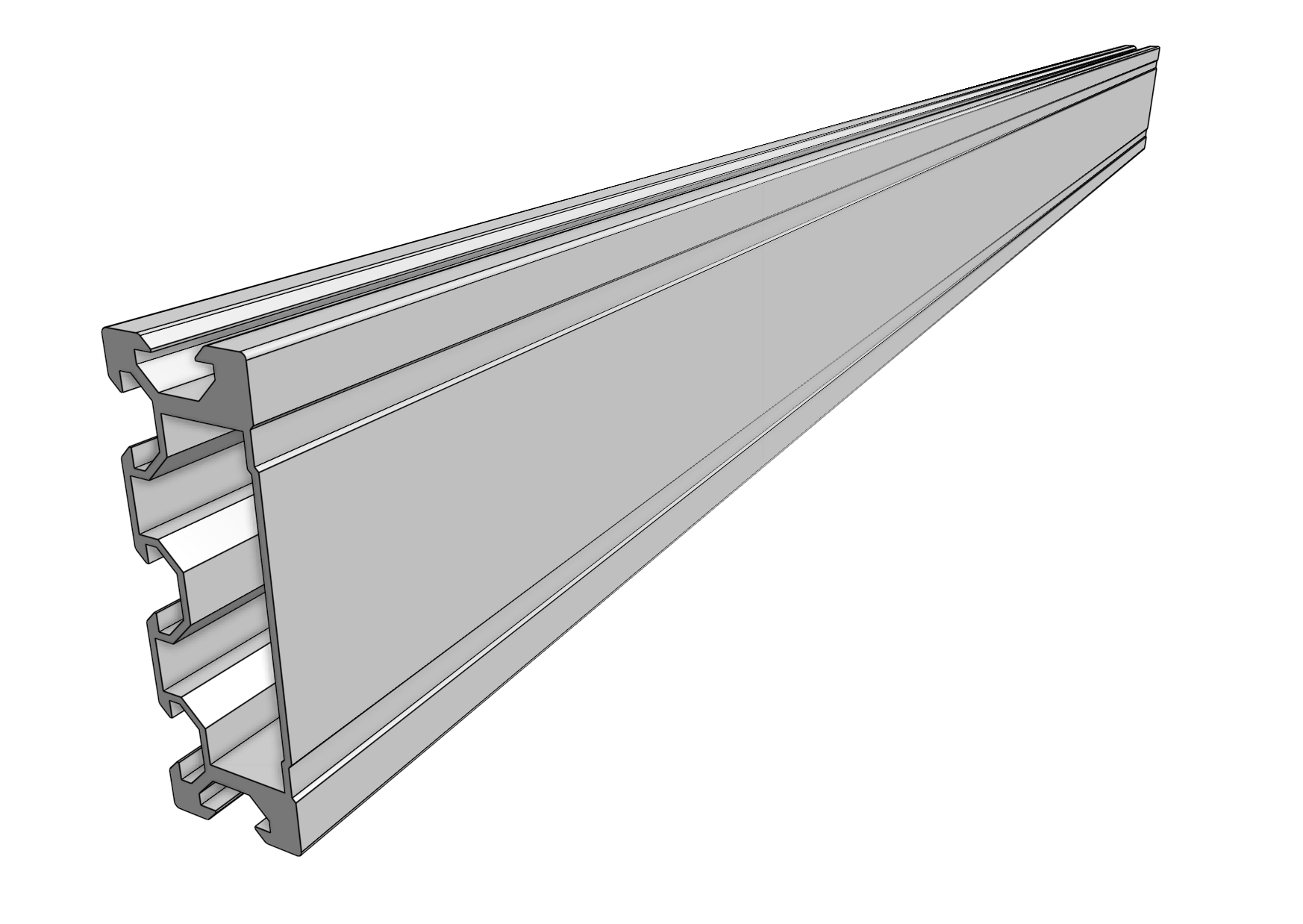

Gantry Main Beam - 750mm
| length | 750mm |
| Price | $25.00 |
| Quantity - Genesis | 2 |
| Quantity - Genesis XL | 0 |
| internal-part-name | Gantry Main Beam - 750mm |
| rev | A |
| cost | $3.75 |

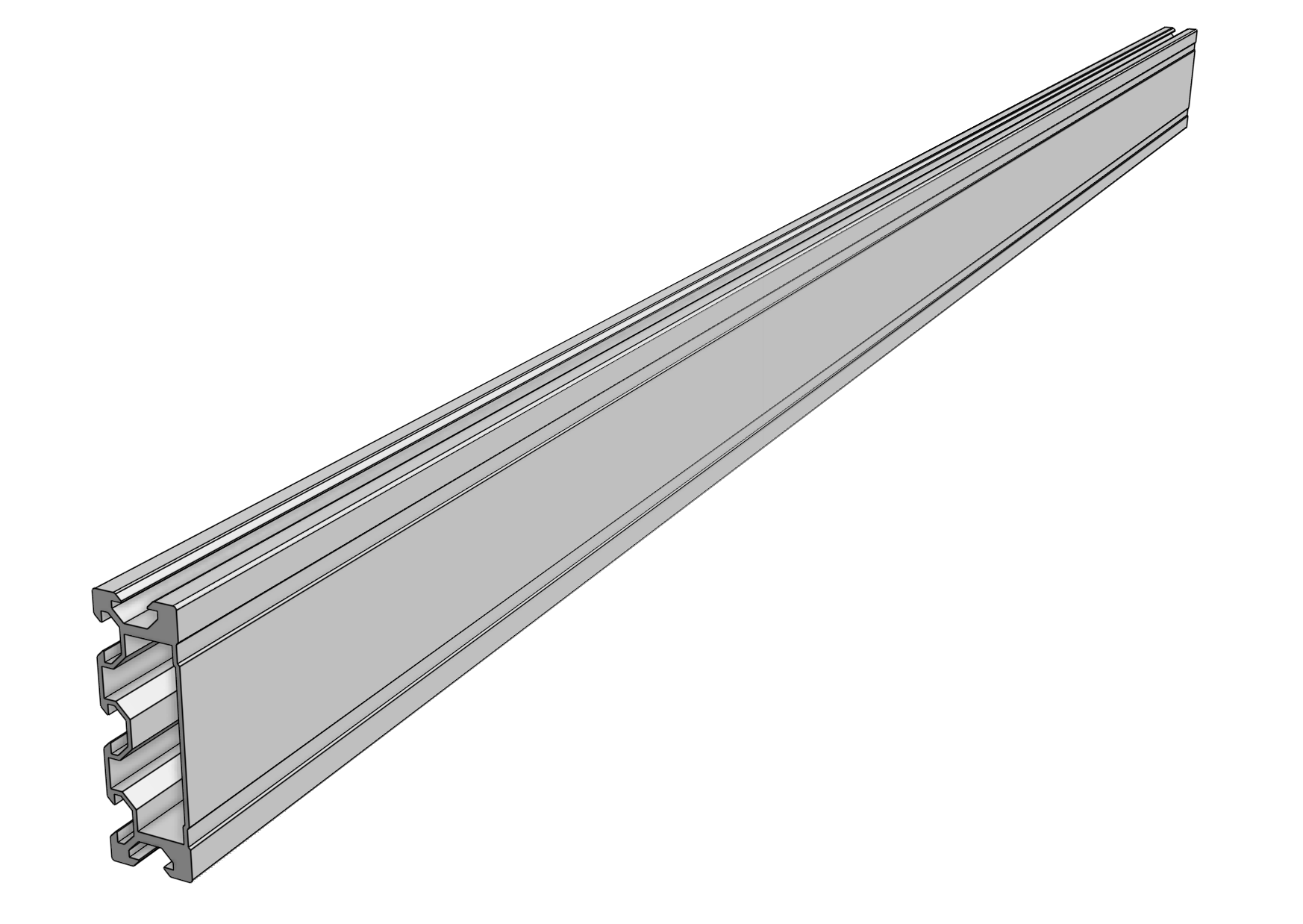

Gantry Main Beam - 1000mm
| length | 1000mm |
| Price | $30.00 |
| Quantity - Genesis | 0 |
| Quantity - Genesis XL | 3 |
| internal-part-name | Gantry Main Beam - 1000mm |
| rev | A |
| cost | $5.00 |
