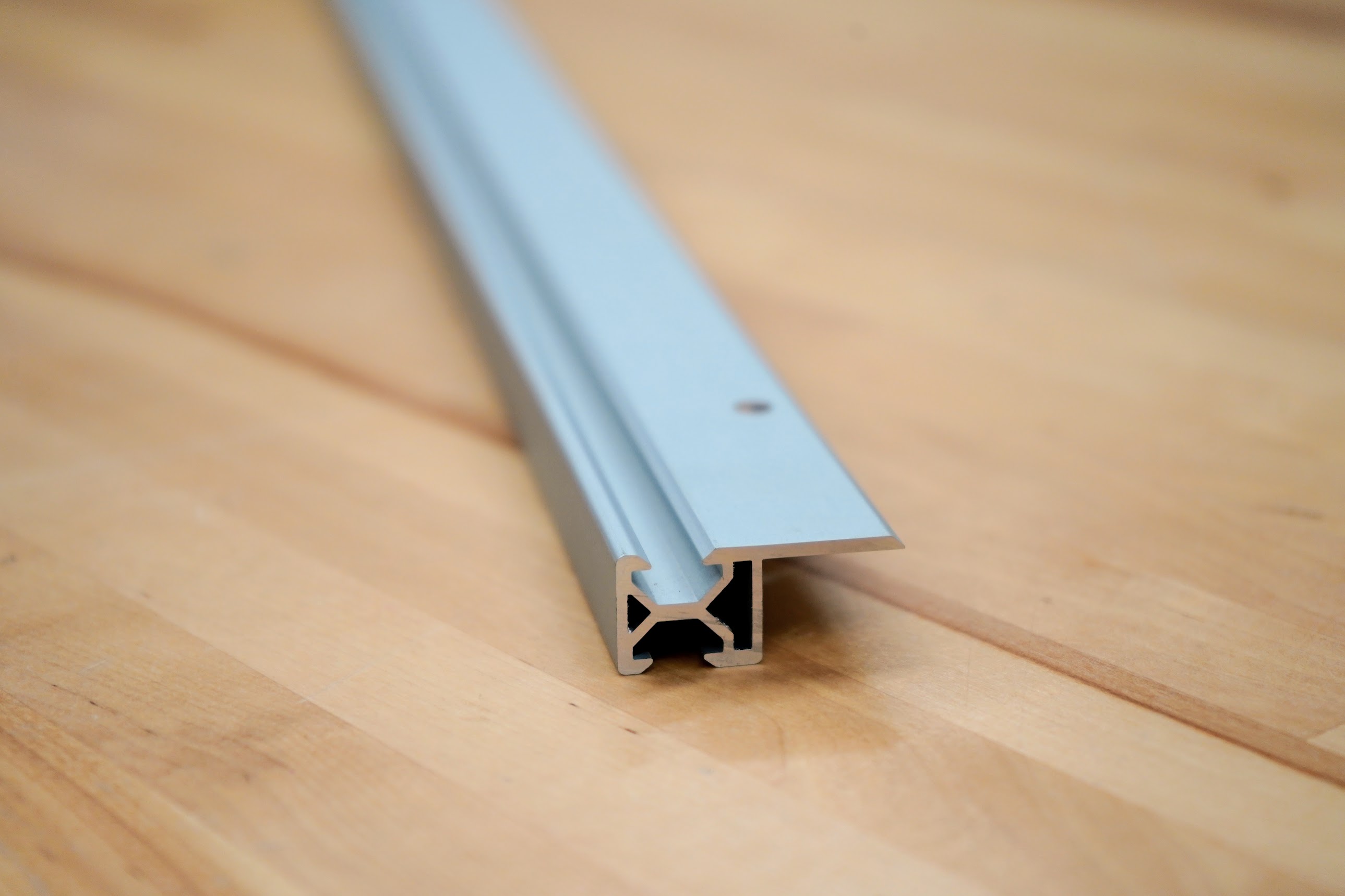

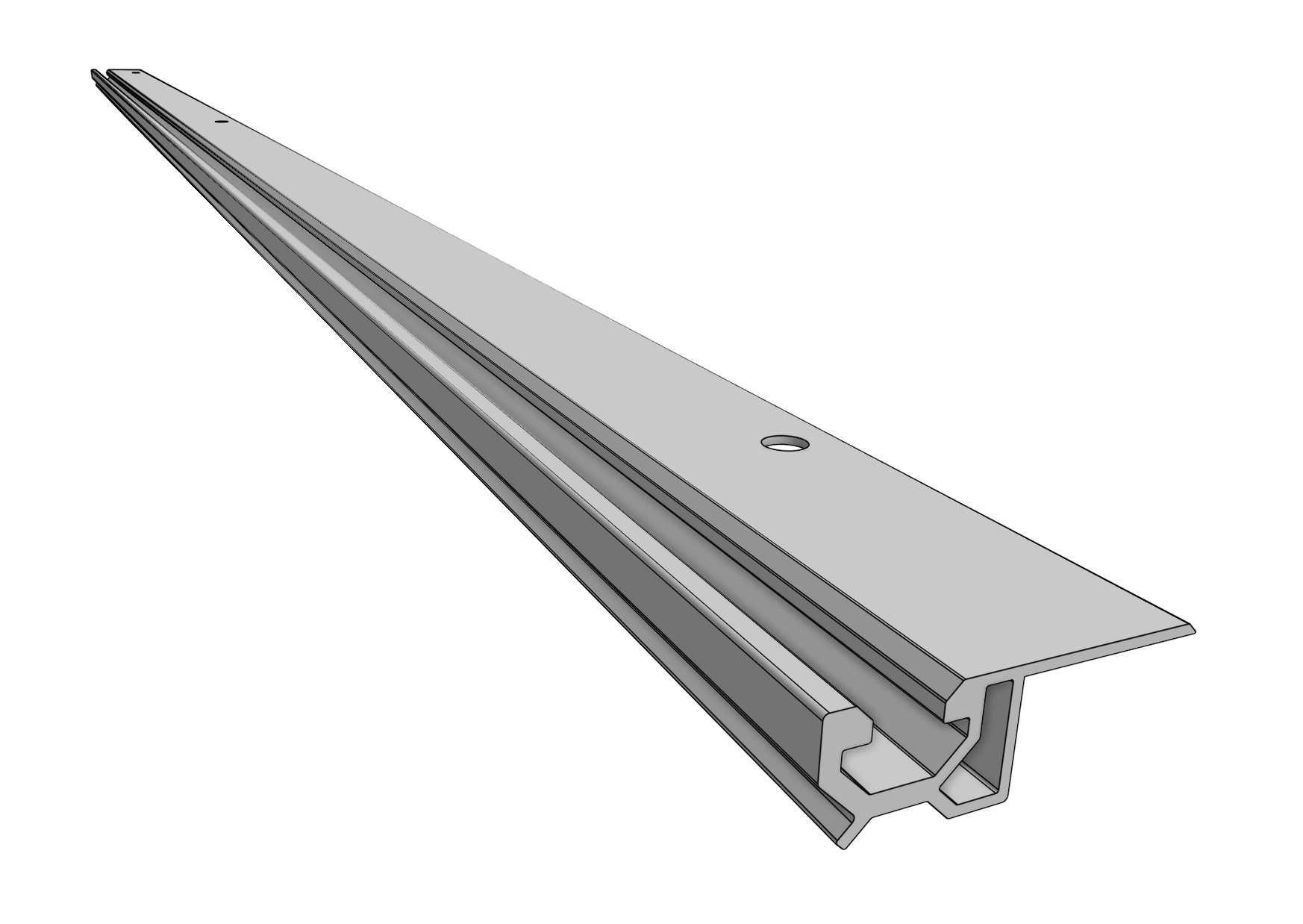

Track Extrusion
The track extrusions are directly mounted to the top outer edges of the supporting infrastrucutre. They are combined end-to-end in order to create longer tracks. The gantry V-wheels roll along the track extrusions, allowing FarmBot to move in the x-direction.
Specs
| length | 1000mm |

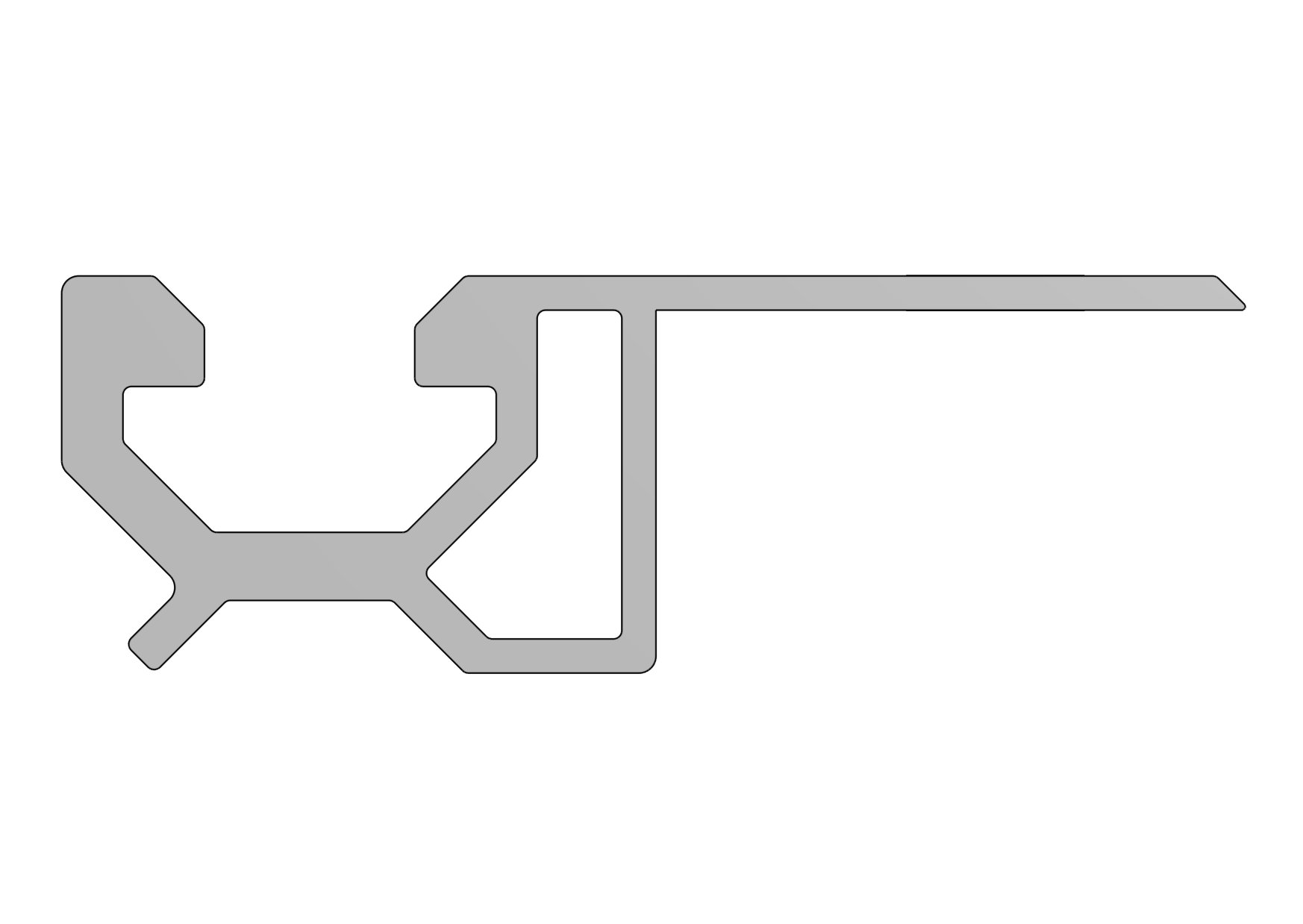

| profile | Custom |
| material | 6063-T5 Aluminum |
| surface treatment | Sand blasted and clear anodized |
| Price | $20.00 |
| Quantity |
Genesis - 6
Genesis XL - 12 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Track Extrusion - 1000mm |
| rev | D |
| vendor | LDO |
| cost | $3.90 |
| component tests | Extrusion tests |
