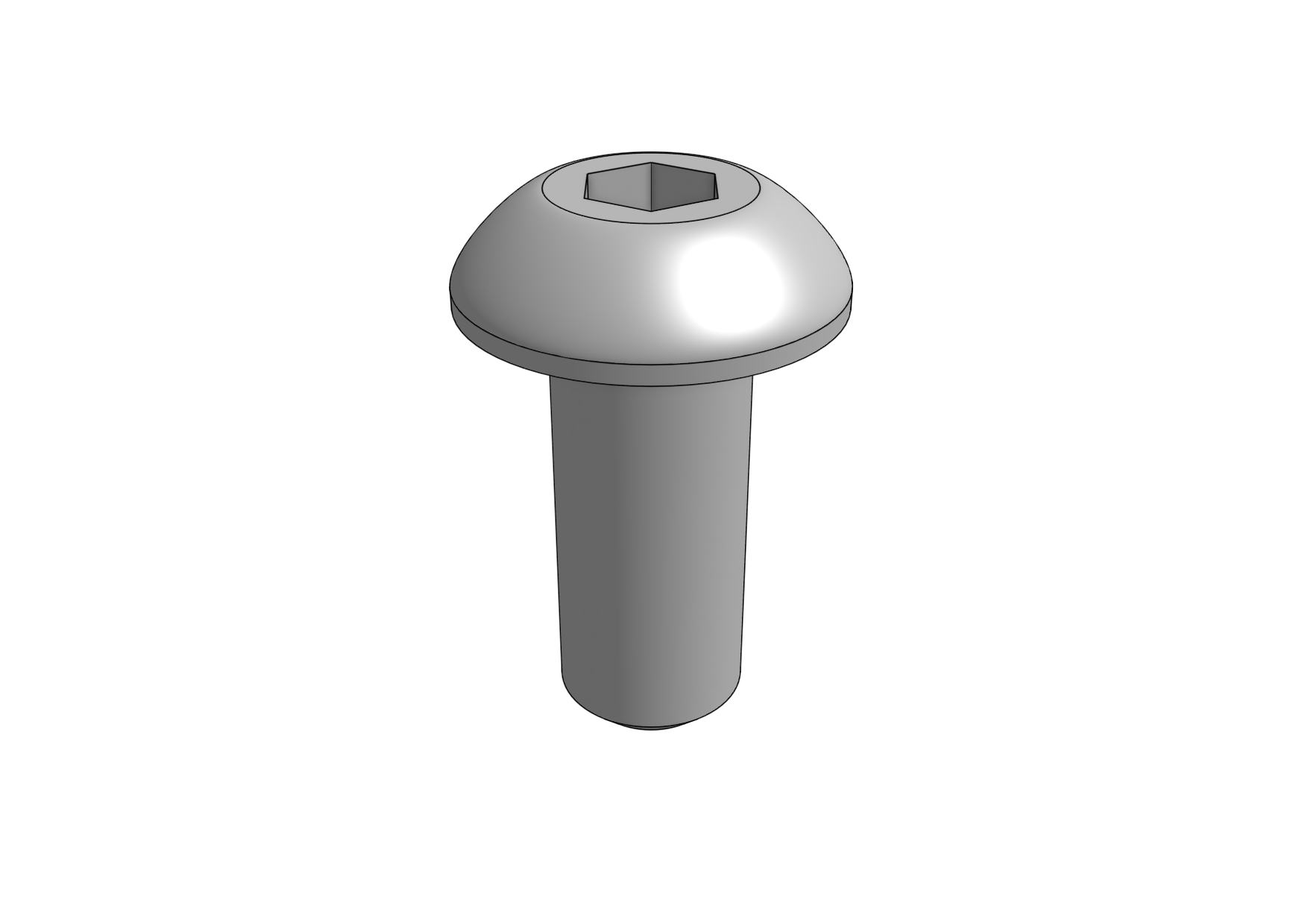

M5 x 12mm Screw
These M5 button-head screws are used throughout FarmBot along with drop-in tee nuts and nut bars to attach plates, brackets, and plastic parts to the aluminum extrusions. The button head provides a wide bearing surface, a low-profile head, and a finished appearance. Length is measured from under the head.
Specs
| threads | M5 x 0.8mm |
| length | 12 |
| trade name | Button-Head Socket Cap Screw |
| material | Stainless Steel |
| head height | 2.75mm |
| head diameter | 9.5mm |
| drive size | 3mm hex |
| Price | $0.15 |
| Quantity |
Genesis - 8
Genesis XL - 8 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | M5 x 12mm Screw |
| cost | $0.026 |
| notes | --- |
