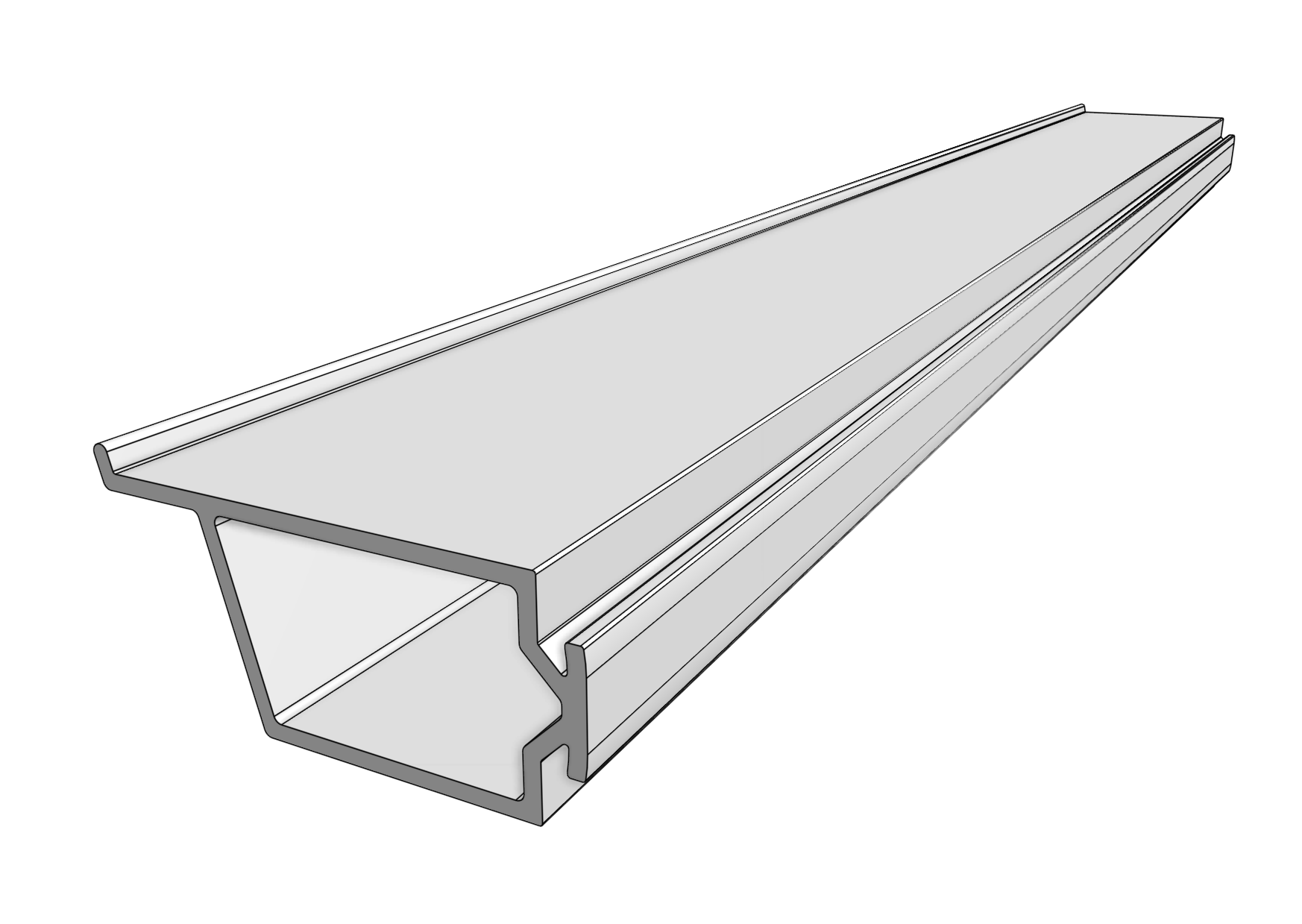

Horizontal Cable Carrier Support
Used to support the Y-axis cable carrier. The internal cavity also functions as an area for the X2 motor and encoder cables and LED strip to be routed through.
Specs
| length | 375mm |
| material | Semi-translucent white polycarbonate |
| Price | $3.00 |
| Quantity |
Genesis - 3
Genesis XL - 7 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Cable Carrier Support - Horizontal, 40mm, Extruded, 375mm |
| rev | E |
| vendor | LDO |
| cost | $0.75 |
| component tests | Plastic Part Tests |
