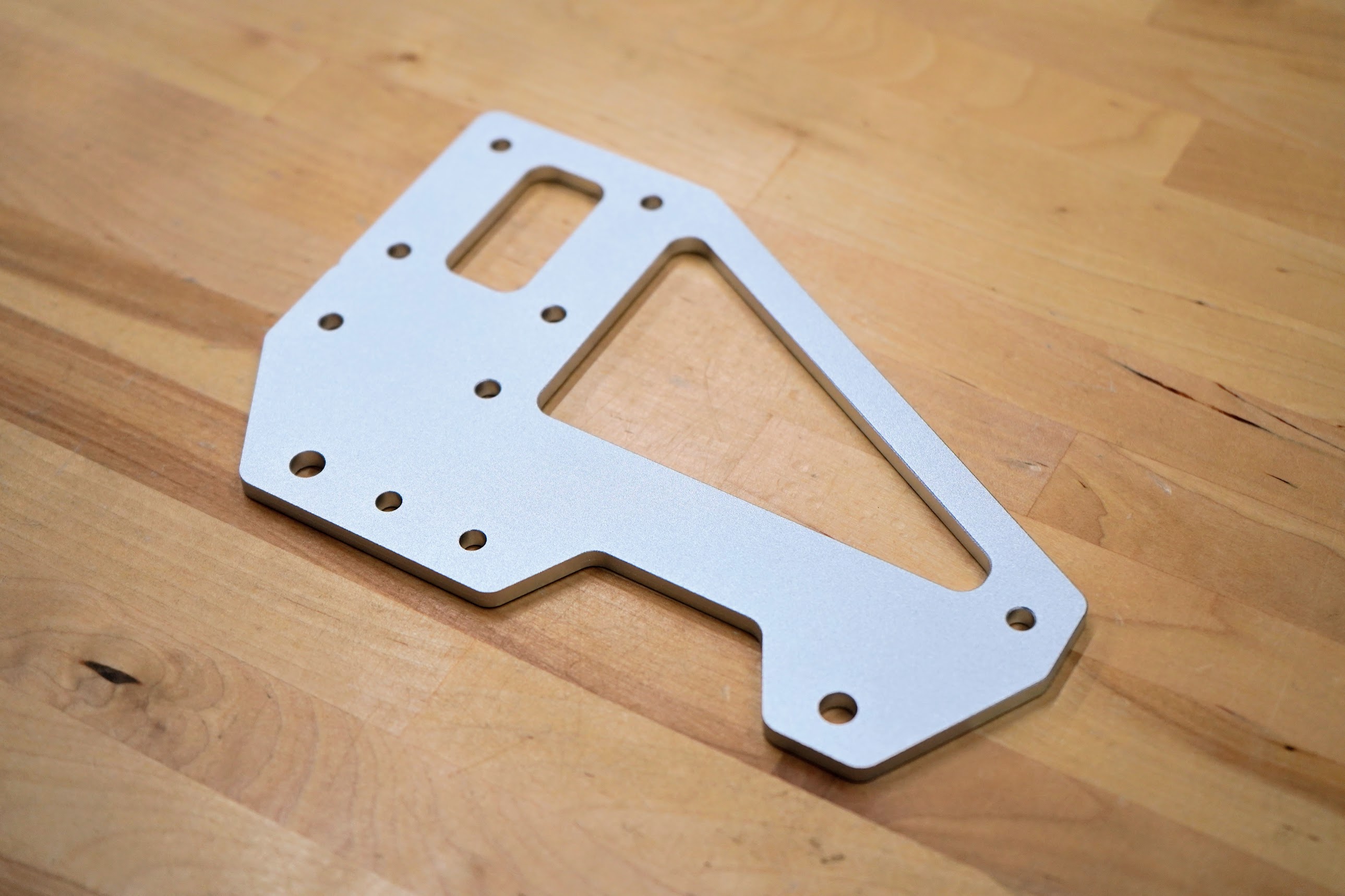

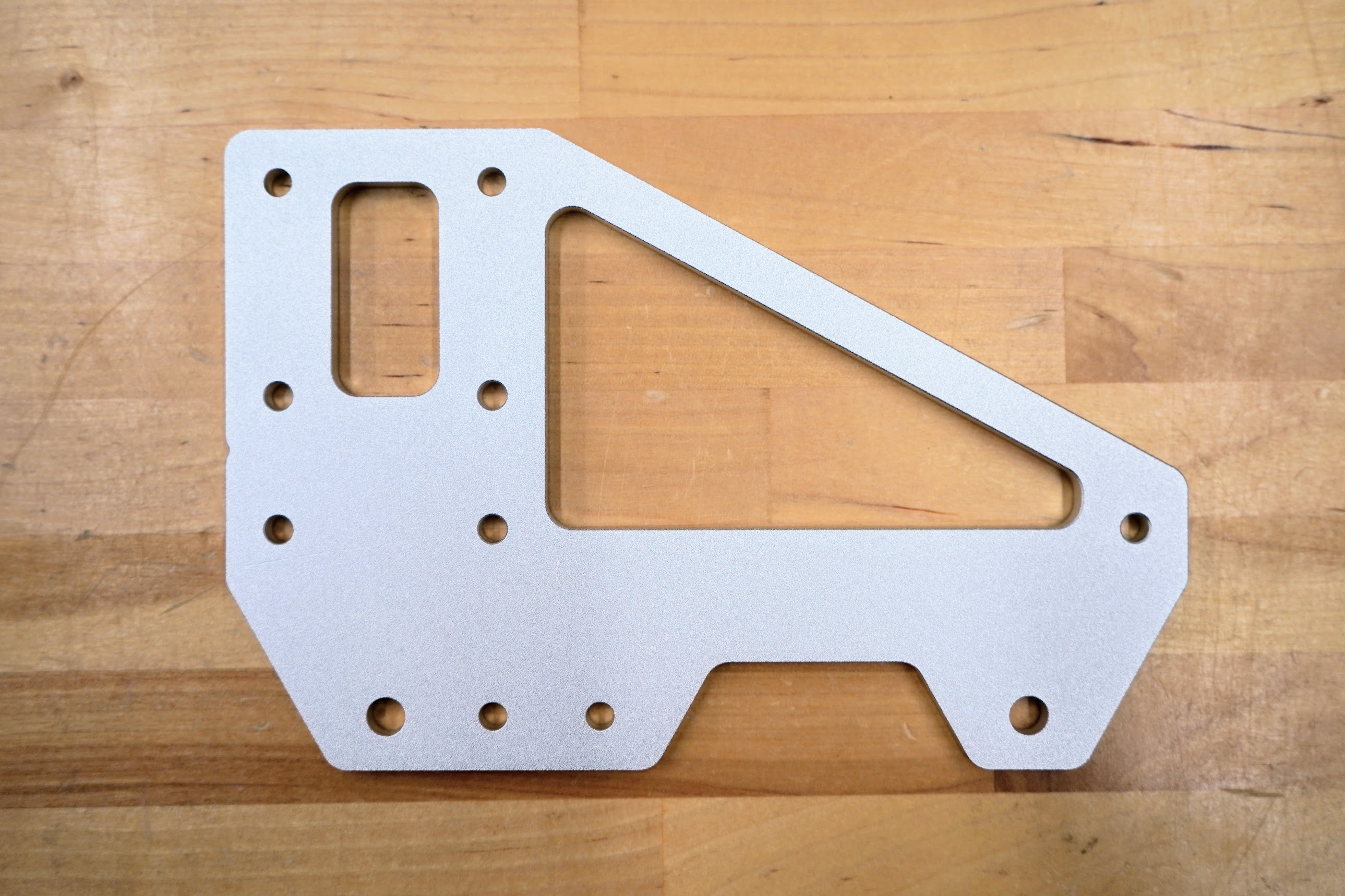

Gantry Wheel Plate
Tech specs for the gantry wheel plates.
Specs
| thickness | 5mm |
| material | 6061 Aluminum |
| surface treatments | Tumble polished Sand blasted Clear anodized |
| Price | $20.00 |
| Quantity |
Genesis - 2
Genesis XL - 2 |

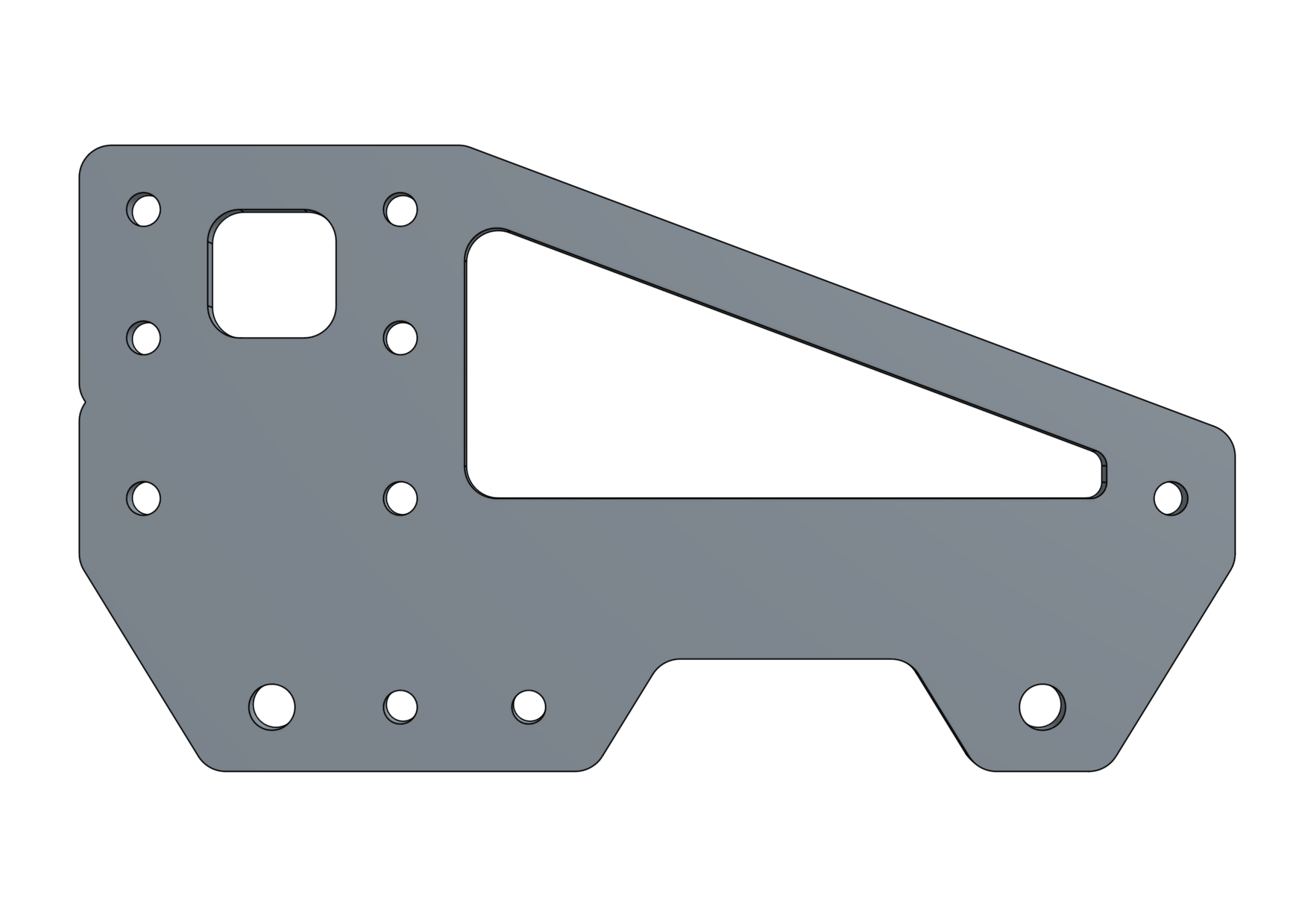

| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Genesis Gantry Wheel Plate |
| rev | D |
| vendor | LDO |
| cost | $4.35 |
| component tests | Plate and Bracket Tests |
