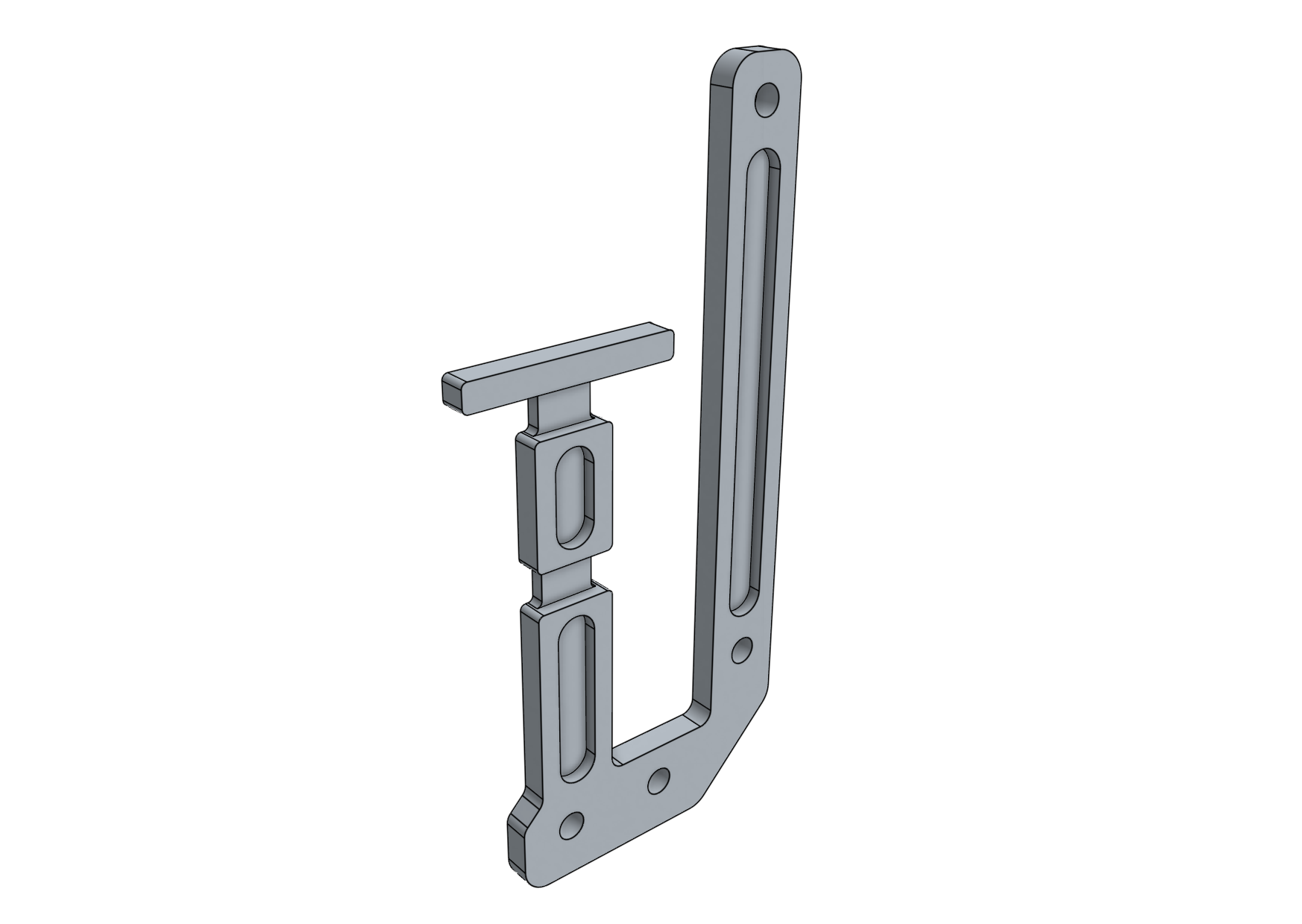

Vacuum Pump Mount
The vacuum pump mount features slots for zip ties to secure the vacuum pump and holes for mounting the cover and for attachment to the cross-slide.
Specs
| thickness | 5mm |
| material | 6061 Aluminum |
| surface treatments | Tumble polished Sand blasted Clear anodized |
| Price | $6.00 |
| Quantity |
Genesis - 1
Genesis XL - 1 |
| CAD model | Onshape |
| Purchase | The FarmBot Shop |
| internal-part-name | Vacuum Pump Mount |
| rev | B |
| vendor | LDO |
| cost | $2.09 |
| component tests | Plate and Bracket Tests |
